D1-N Series Servo Drive User Manual Servo Drive Configuration
5-6 HIWIN MIKROSYSTEM Corp.
MD17UE01-1906
Figure 5.1.2.3

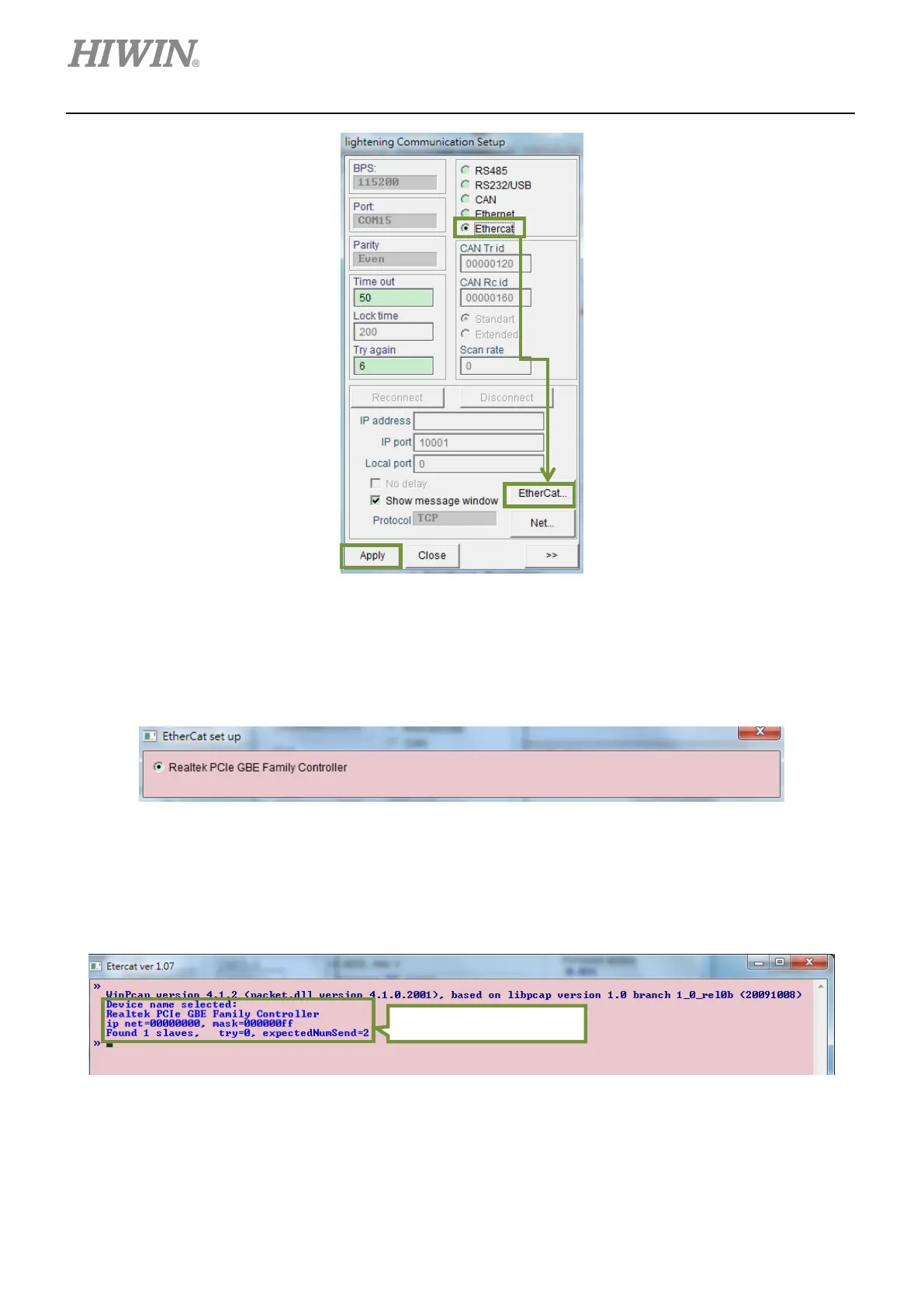

EtherCat set up window appears as figure 5.1.2.3. All the network cards of the PC will be shown in
the window. Select the network card in use and close EtherCat set up window. Then click on Apply
button in lightening Communication Setup window.
Figure 5.1.2.4
After setting completes, a window appears as figure 5.1.2.4. The connected slaves will be shown in
the window. Return to the main window of Lightening. The connection is established and Ethercat
will appear in the title of the window, as figure 5.1.2.5.
Figure 5.1.2.5
One slave is connected.
