Operation - Preparation
116 DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual Release M
April 2017
5.2 Preparation
Introduction
After the DR4500A recorder is installed and configured, there are a few preparation tasks to perform prior
to start-up. These tasks include:
 installing the chart,
 setting the time line, and
 changing the chart hub, if necessary.
Refer to 48HTable 5-1 for these procedures.
In some instances, it may be necessary to:
 tune the controller portion - see Subsection 49H5.3 50HStart-up,
 align the pens electrically - see Section 9 Troubleshooting/Service,
 recalibrate the input - see Section 7 Input Calibration.
Install/replace chart
51HTable 5-1 lists the steps required to install/replace the chart. Refer to 52HFigure 5-1 and follow the procedure.

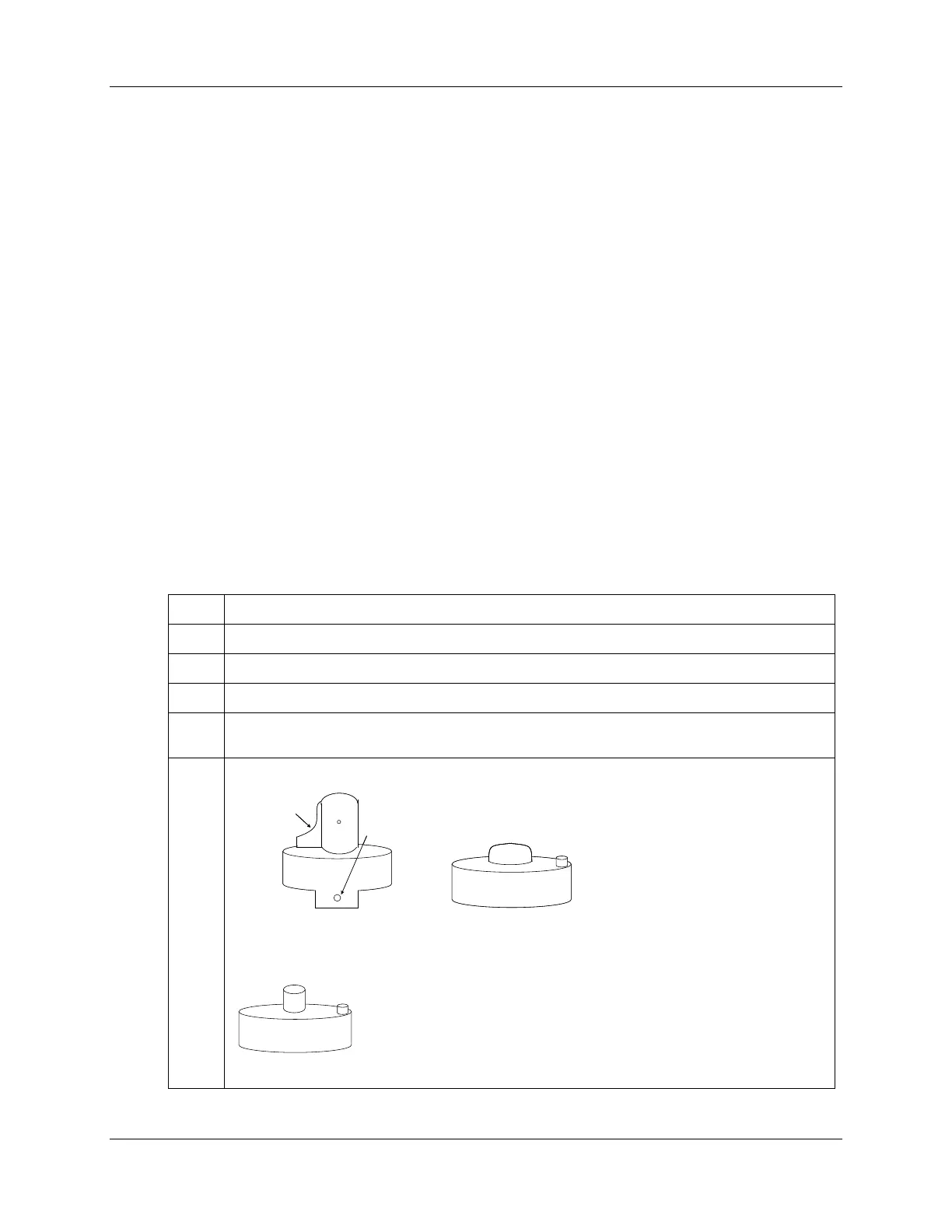

Table 5-1 Install/replace chart
Step
Action
1
Open the recorder door. Remove power if it is applied.
2
Pull the pen lifter up in order to raise the pen(s) from the chart.
3
If there is a chart already installed, remove the chart from the hub and retaining clips.
4
Install the new chart so that its edges are under the four retaining clips and its small alignment
hole is over the alignment pin on the hub.
5
 If your chart hub looks like one of these and requires a smaller hub size:
a)
Latch
Set screw
Latch
Set screw
b)
For a) unscrew the hex head set screw and open the latch. For a) and b): pull the hub off the
motor shaft. Replace with the smaller hub shown below. (Use hub from Honeywell hub kit
30756150-001.)
Continued
