Installation - Option Wiring Procedures
Release M DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual 51
April 2017

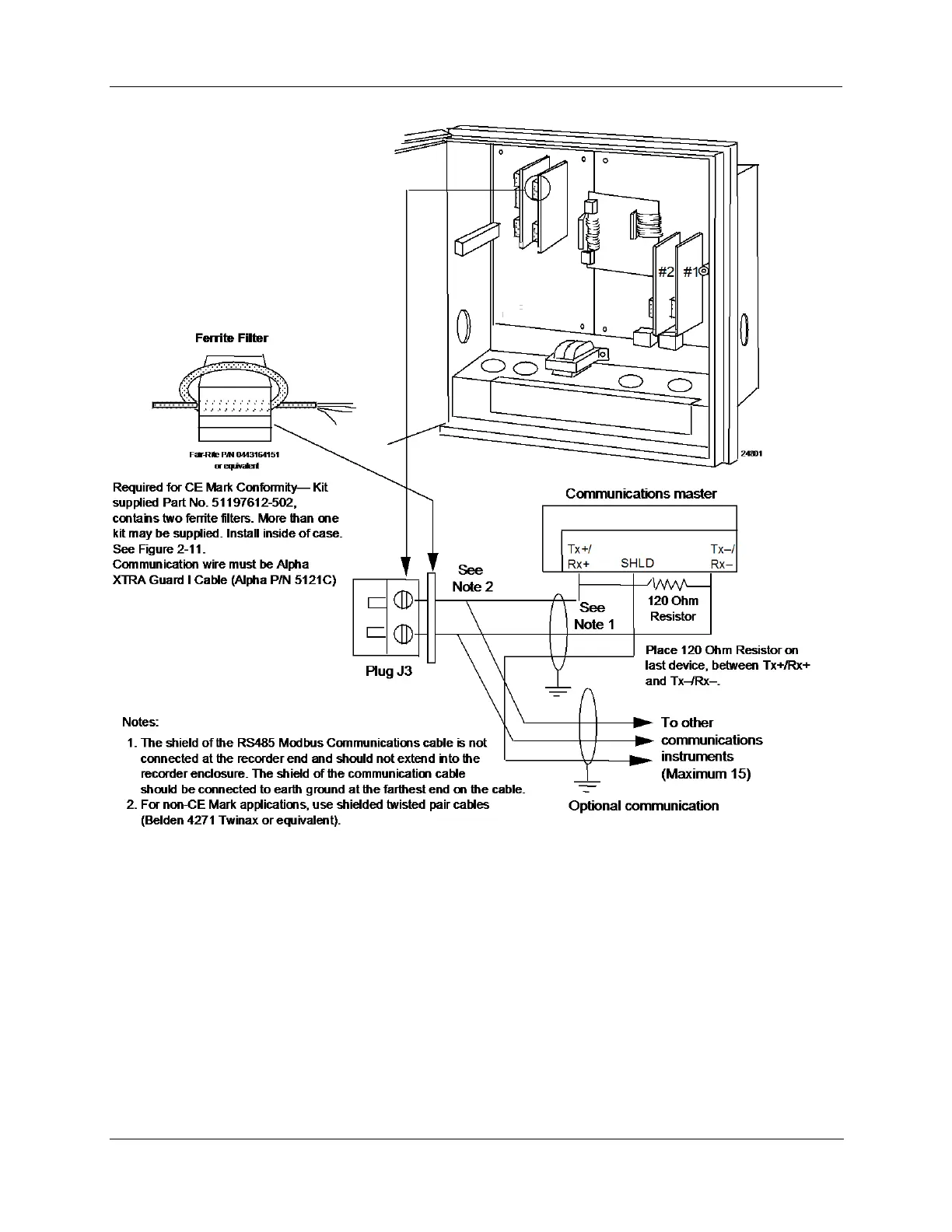

Figure 2-21 RS485 Modbus communications wiring
