Installation - Mounting Methods
18 DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual Release M
April 2017
Mounting flush in panel (New panel cutout)
Refer to Figure 2-5 and follow the procedure in Table 2-3 to make a new cutout in a panel and mount your
recorder in the cutout.
Table 2-3 Mounting flush in a new panel cutout
Step
Action
1
At the appropriate location, make a square cutout in the panel measuring 12.7 ±0.060 inches
by 12.7 ±0.060 inches (322.58 ±1.52 by 322.58 ±1.52 millimeters). See Figure 2-3.
2
Orient the recorder case properly and slide it into the cutout from the front of the panel.
Support the recorder as shown in steps 3 and 4.
3
Refer to Figure 2-5. From the back of the panel, attach a mounting bracket to each side of the
recorder case using a 1/4-20 x 1/2 inch hex screw and a lockwasher for each bracket
(mounting hardware supplied with recorder). Leave the screws slightly loose so you can adjust
the brackets.
4
While holding the recorder firmly against the panel, slide each bracket against the back of the
panel and tighten the screws.
Hex screw,
1/4-20 x
1/2 inch and
washer
21406

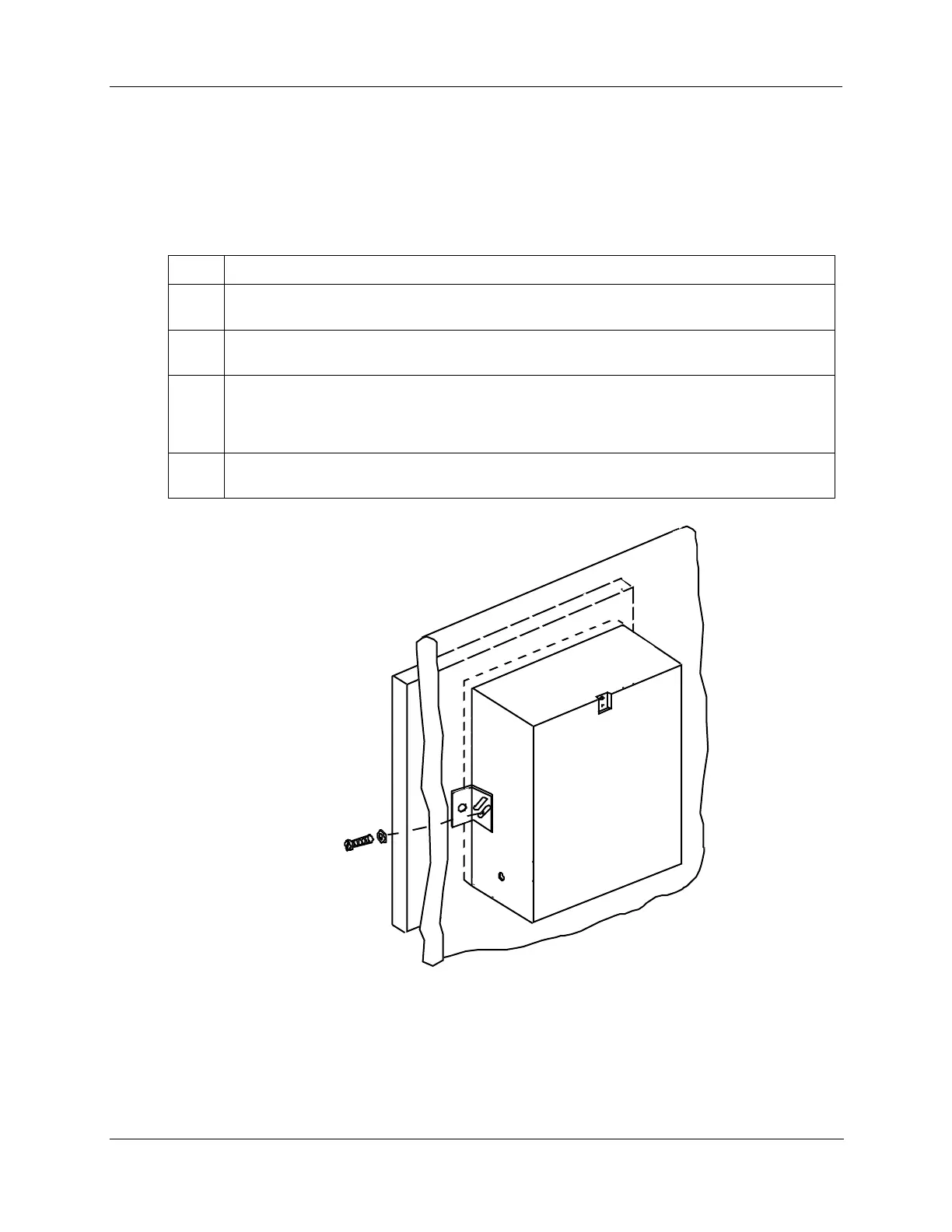

Figure 2-5 Mounting Flush in a New Panel Cutout
