Installation - Option Wiring Procedures
Release M DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual 53
April 2017
#2 #1
22817
Auxiliary Output/
Modbus Comm
Printed Wiring Board
+
_
4-20 mA
auxiliary
output
Plug J2
Fair-Rite P/N 0443164151
or equivalent
Ferrite Filter
.0047 µF Capacitor
Controller load
0-1000 ohms
Capacitor Kit 51197755-001
Install capacitors as shown in figure.
Required for CE Mark Conformity
Kit Part No. 51197612-502, contains
two ferrite filters; Part No.51197612-508
contains 8 ferrite filters. Install inside of
case. See Figure 2-11.

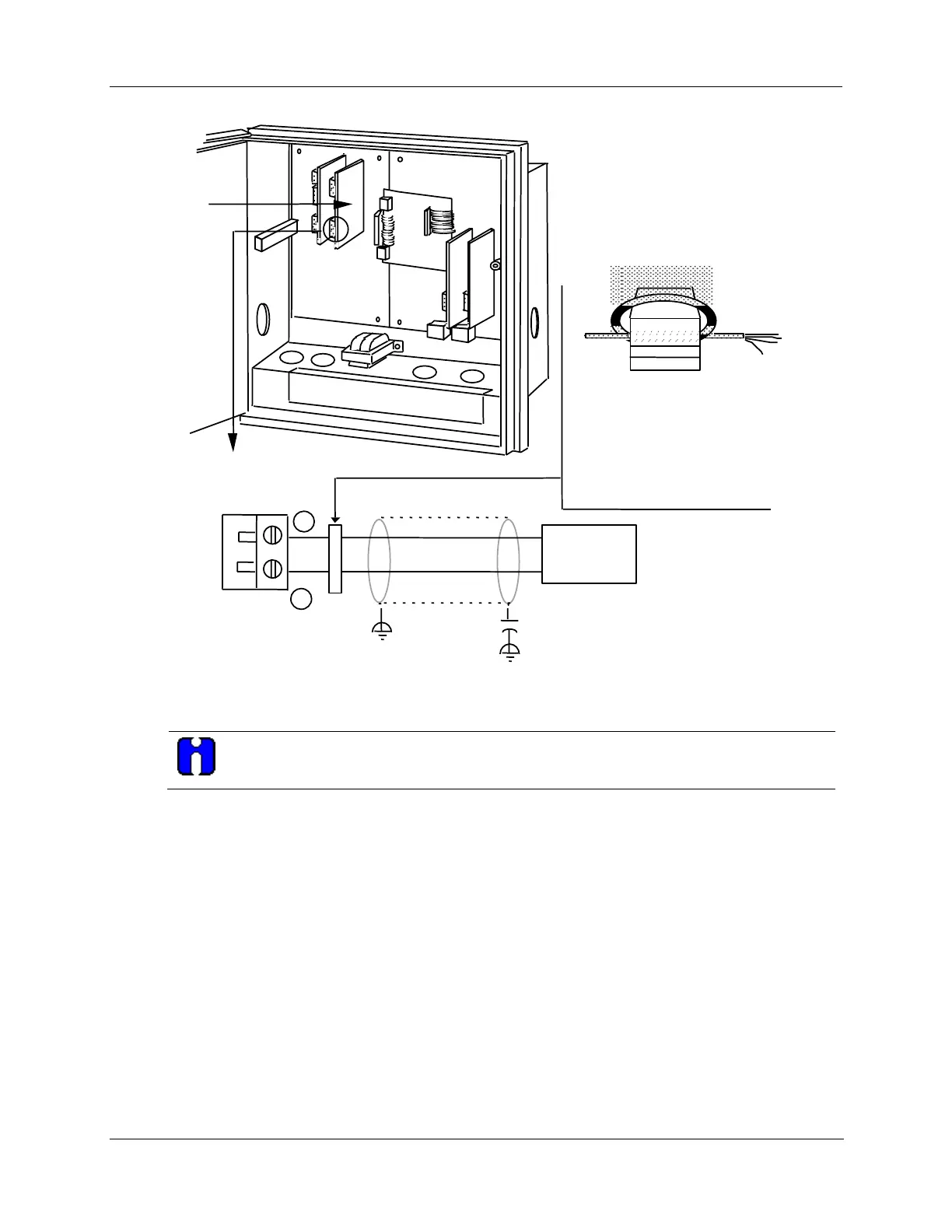

Figure 2-22 4-20 mA auxiliary output wiring
Refer to Figure 2-16 for Auxiliary Output 2 and Auxiliary Output 3 wiring.
