Installation - Input Wiring Procedures
34 DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual Release M
April 2017

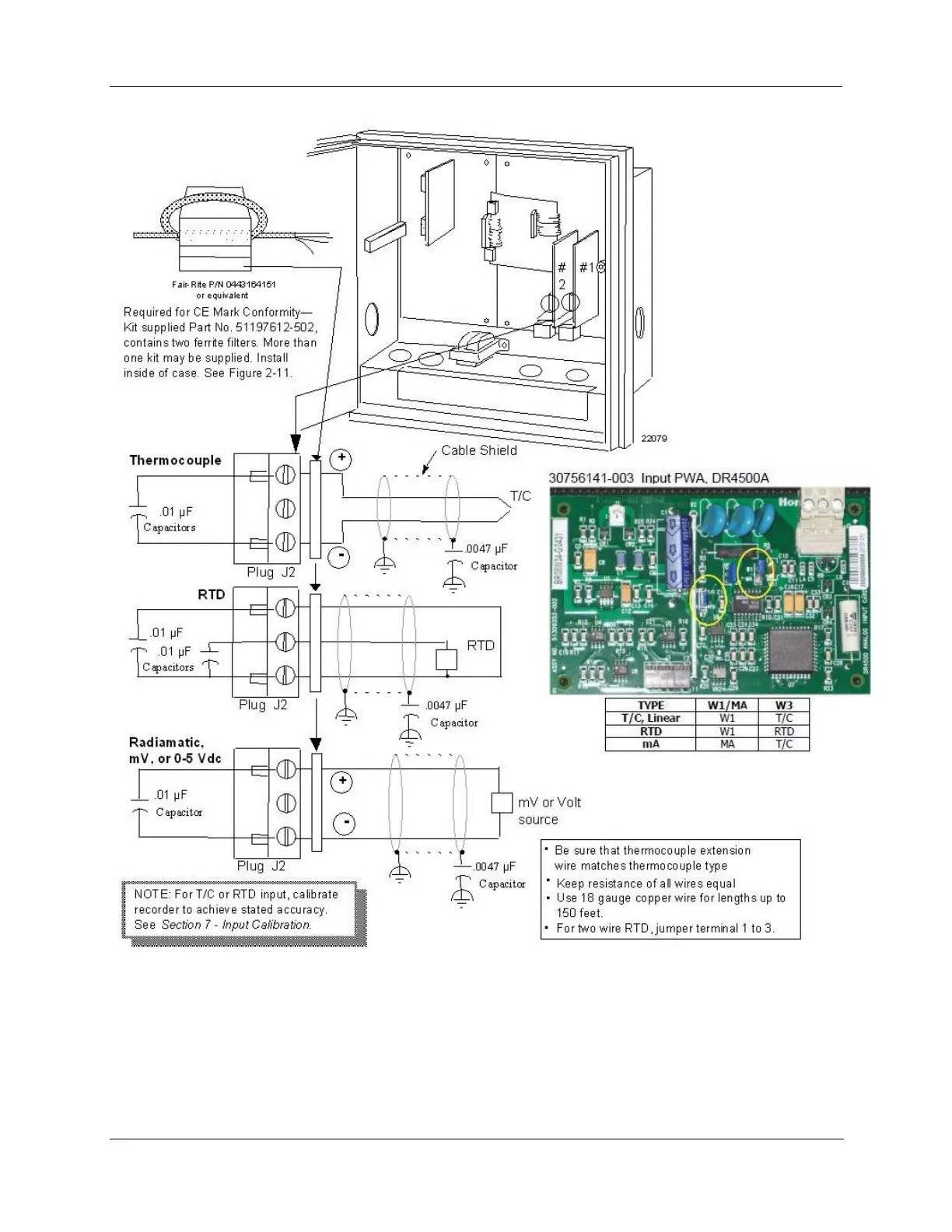

Figure 2-13 Thermocouple, RTD, Radiamatic, mV, or 0–5 Vdc input wiring
