Parts List
Exploded Views
Release M DR4500A Classic Series Circular Chart Recorder With or Without Control Product Manual 223
April 2017
10.2 Exploded Views
Door assembly

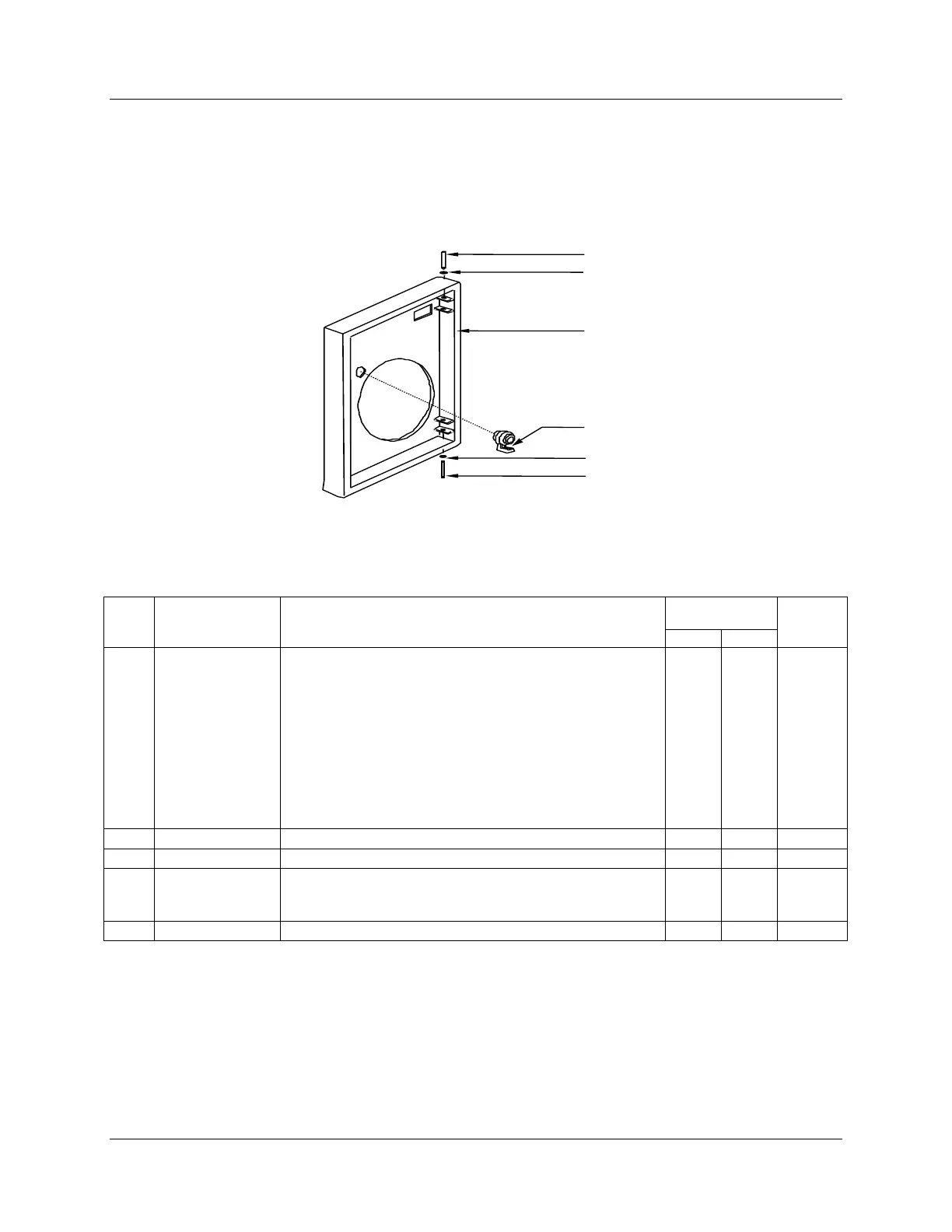

Figure 10-1 is an exploded view of the Door Assembly. Table 10-1 is a list of the associated part numbers.
1-1
21452C
1-2
1
1-3
1-1
1-2
1-3A
Figure 10-1 Door assembly
Table 10-1 Door assembly parts
Key
Part Number
Description
Recommended
Spare Parts per
Quantity
per Unit
10
100
1
(Note
3)
30754955-501
30754955-504
30754955-505
30754955-506
30754955-507
30754955-508
51452435-501
51452435-502
30756548-501
30756548-501
Door Assembly
Blue with glass window and latch
Blue with acrylic window and latch
Gray with glass window and latch
Gray with acrylic window and latch
Black with glass window and latch
Black with acrylic window and latch
NEMA4X Door with Acrylic window
NEMA4X Door with Glass window
Stainless Steel Door with Glass window
Stainless Steel Door with Acrylic window
1
1-1
(K)30755980-001
Hinge Pin (Note 1)
2
1-2
(K)30755980-001
Retaining Ring (Note 1)
2
1-3
1-3A
51309609-503
30755980-006
51452208-503
Latch/Lock Assembly Kit
Key kit for keyed latch or lock
NEMA4X Latch Kit
1
3
1
51404929-501
External Keypad Upgrade Kit (not shown)
1
NOTE 1: For Door 30754955-50X, (K) denotes that these parts are included in the miscellaneous hardware kit 30755980-001. For all other
doors, the parts are included with applicable door assembly.
