CONFIGURING MAXPRO NVR

Configuring the Cameras

160 MAXPRO NVR 5.0 Installation and Configuration Guide

2. Click the Camera tab to open the Camera page.

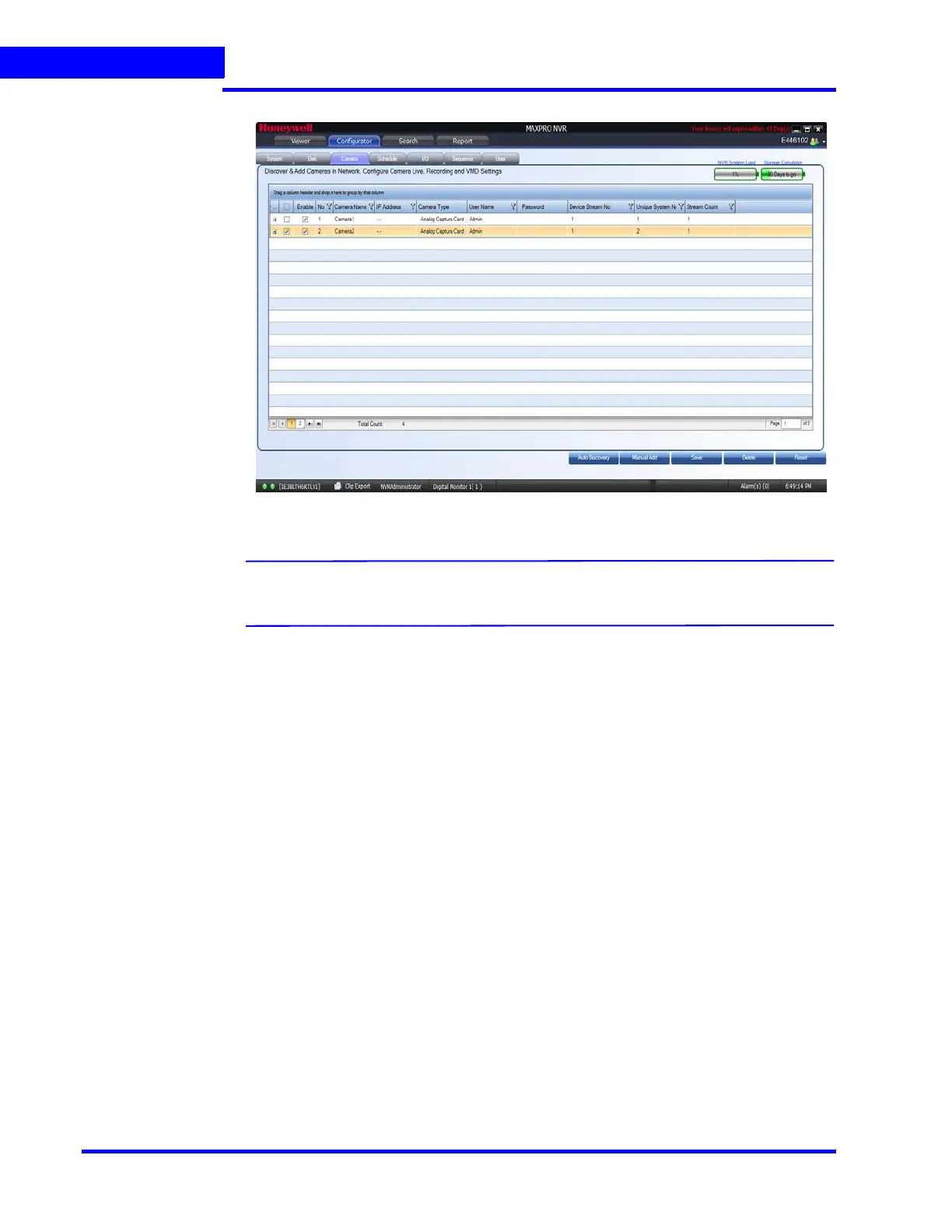

Figure 6-35 Camera page

Note: All analog cameras that are pre-configured in the factory image appear in the

Camera page when you first open it.

3. Under the Camera pane, select a camera to change the default parameters for the

following settings.

• Enable/Disable - Enables or disables a camera for recording and live video. By

default the check box corresponding to a camera to enable live video preview is

selected. To disable live video preview, clear the check box corresponding to a

camera. The live video appears under Video Preview at the bottom right corner of

the Camera page.

• Number - Displays the camera number. You cannot modify the camera number.
