LOGGING ON AND GETTING STARTED

Getting to Know the MAXPRO NVR User Interface

94 MAXPRO NVR 5.0 Installation and Configuration Guide

Configurator Tab

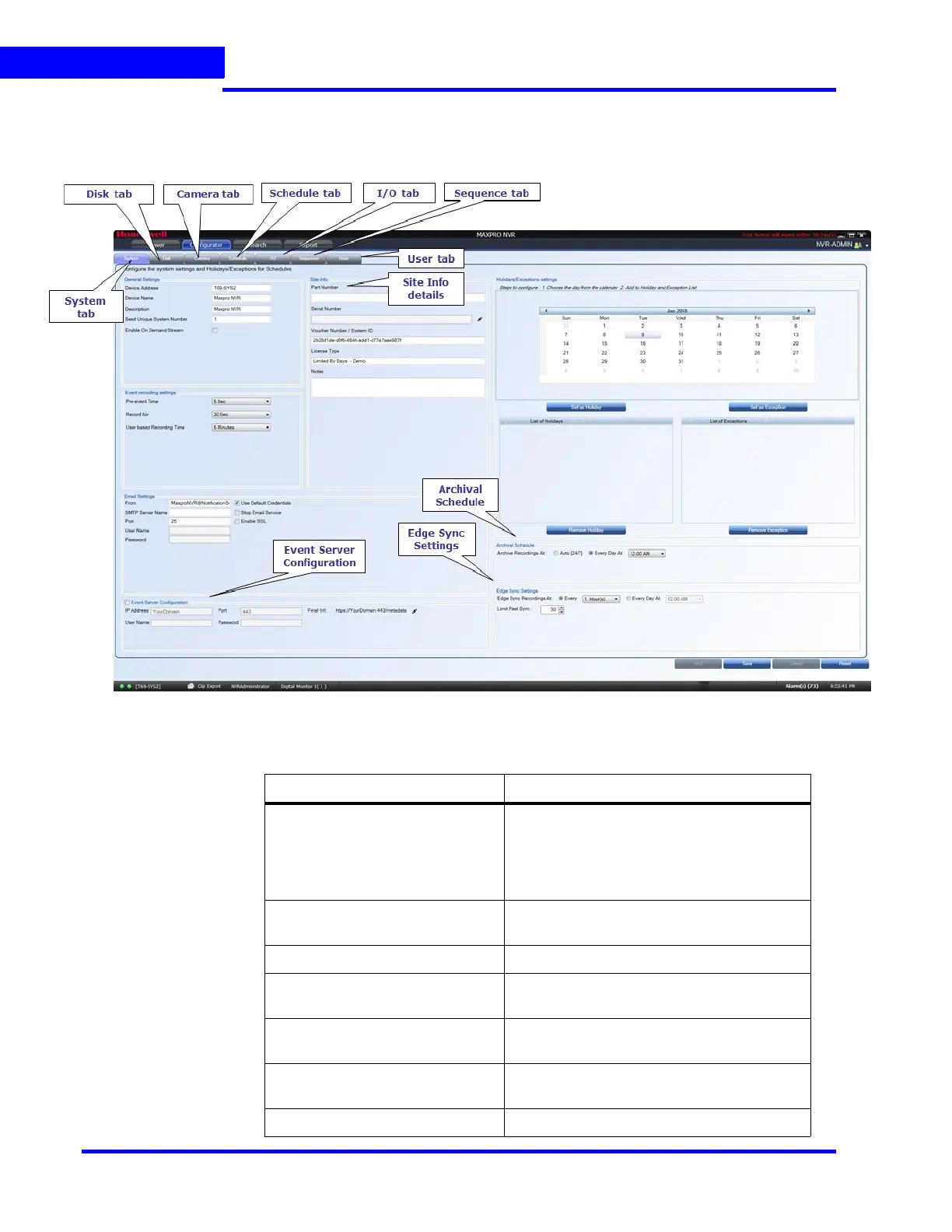

Figure 5-8 illustrates the Configurator tab.

Figure 5-8 Configurator tab

The settings in the Configurator tab enable you to add and configure the video devices and

set up the MAXPRO NVR system.

Components Description

System tab Helps you to configure the system level

settings, Site information, Archival Schedule,

Holidays/Exceptions settings, Event Server

Configuration and Edge Syn Settings for

MAXPRO NVR.

Disk tab Helps you to configure the disk settings for

video storage.

Camera tab Helps you to configure the camera settings.

Schedules tab Helps you to configure the schedules for

recording video.

IO tab Helps you to configure the input and output

for a camera.

Sequence tab Helps you to select a sequence of cameras

for live video.

User tab Helps in user administration.
