CONFIGURING MAXPRO NVR

Configuring the Cameras

MAXPRO NVR 5.0 Installation and Configuration Guide 163

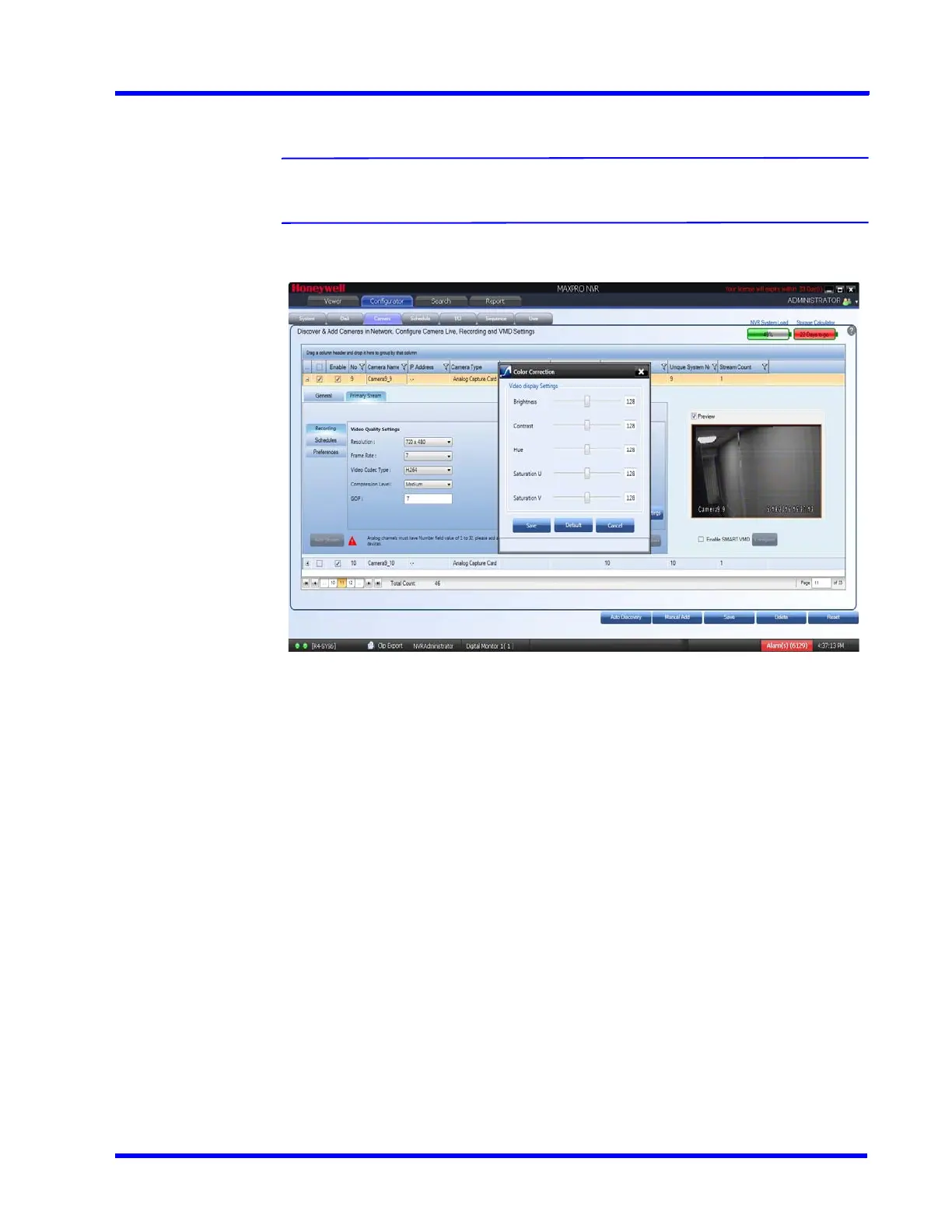

7. Click Video Display Settings. The Color Correction dialog box appears Figure 6-37.

Note: The Video Display Settings feature is available only on the desktop local client

on the NVR Hybrid Server machine.

Figure 6-37 Color Correction dialog box

8. Under Video Display Settings

• Move the slider right or left to increase or decrease the Brightness, Contrast, Hue,

Saturation U and Saturation V.

Type the required value in the respective boxes to adjust the video display settings.

Click Default to set the default values.

9. Click Save to save the display settings.
