INSTALLING THE NVR SOFTWARE

Client Installation

MAXPRO NVR 5.0 Installation and Configuration Guide 77

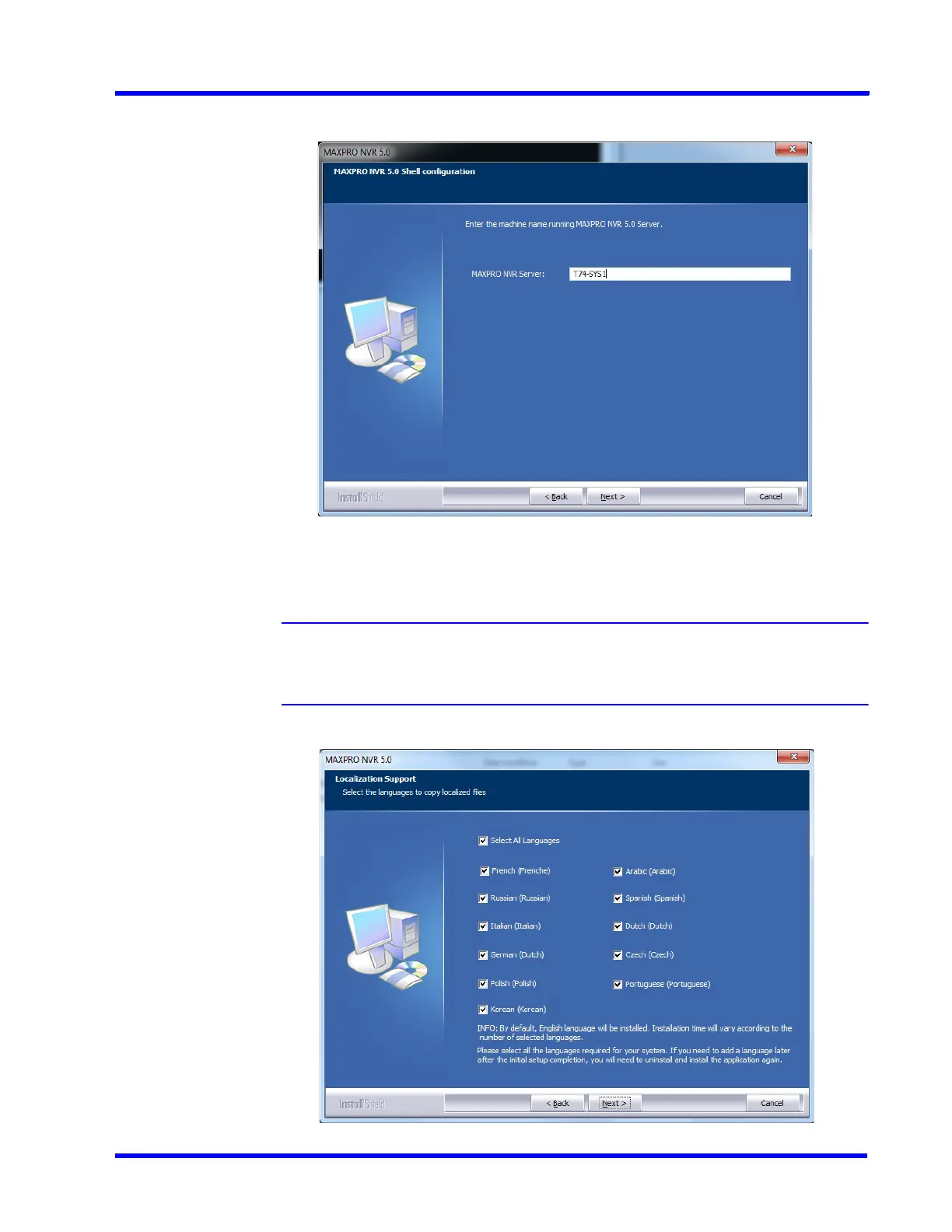

1. Select Client Installation in Figure 4-6 and click Next. The Client Configuration screen

(Figure 4-14) appears.

Figure 4-14 MAXPRO NVR 5.0 Client Configuration

2. Type the MAXPRO NVR Server name or IP address, and then click Next. The

Localization Support screen (Figure 4-15) appears.

Note: If you do not know the server name or if the server is not accessible, then type the

local host/computer name. The server name can be changed after the installation

in the Client.

Figure 4-15 Localization Support
