APPENDIX B

MAXPRO®NVRs - AXIS Camera/Encoders Discovery and Configuration (using ONVIF)

344 MAXPRO NVR 5.0 Installation and Configuration Guide

1. Log on to the AXIS camera web page. The AXIS camera home page appears with live

video.

2. Click Setup and then navigate to System Options > ONVIF. The User List dialog box

appears (see Figure B-16).

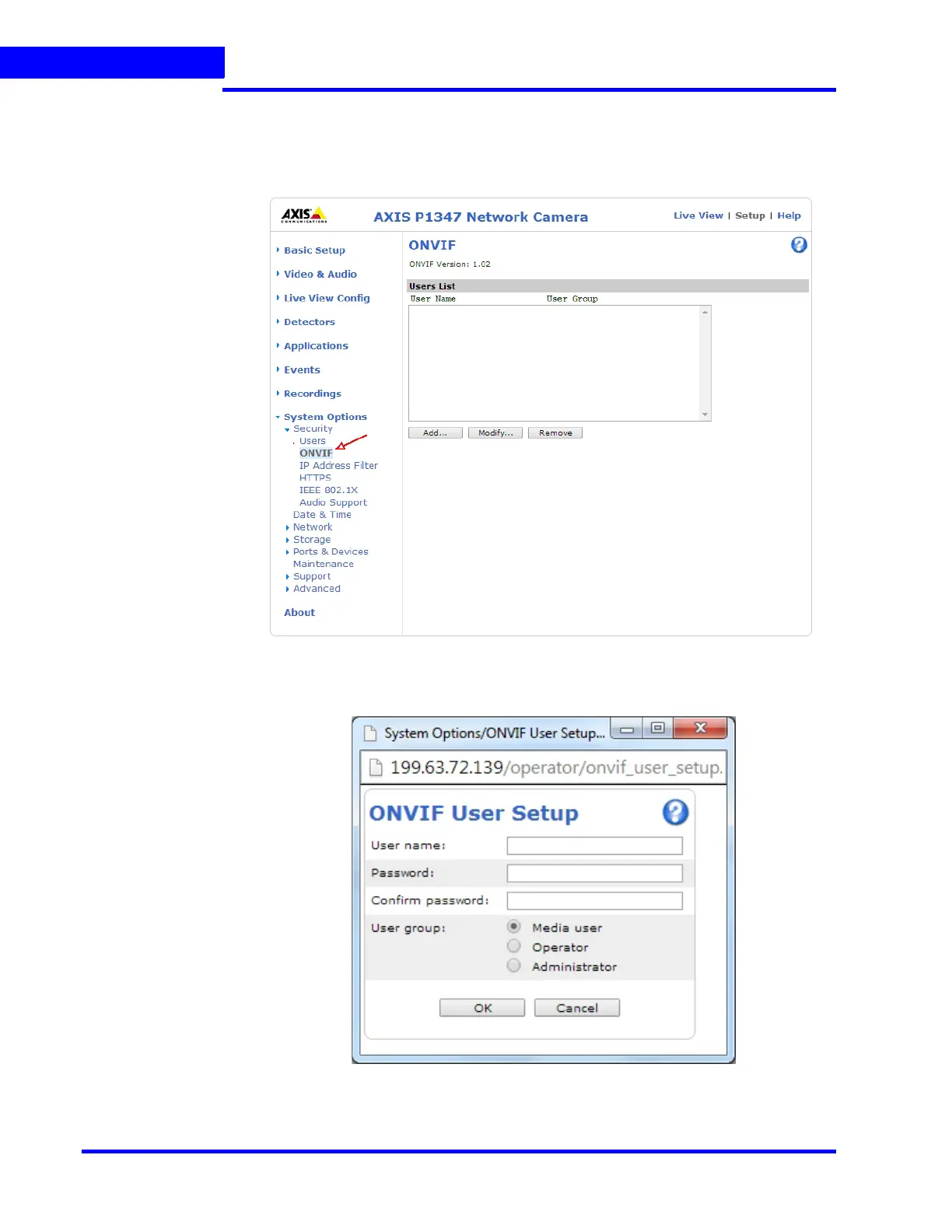

Figure B-16 User List

3. Click the Add button. The ONVIF User Setup dialog box appears (see Figure B-17).

Figure B-17 ONVIF User Setup

4. Type the user name and password in the respective boxes.
