5-21
Service Calibrations
HP Designjet 4000/4020 Printer Series Service Manual

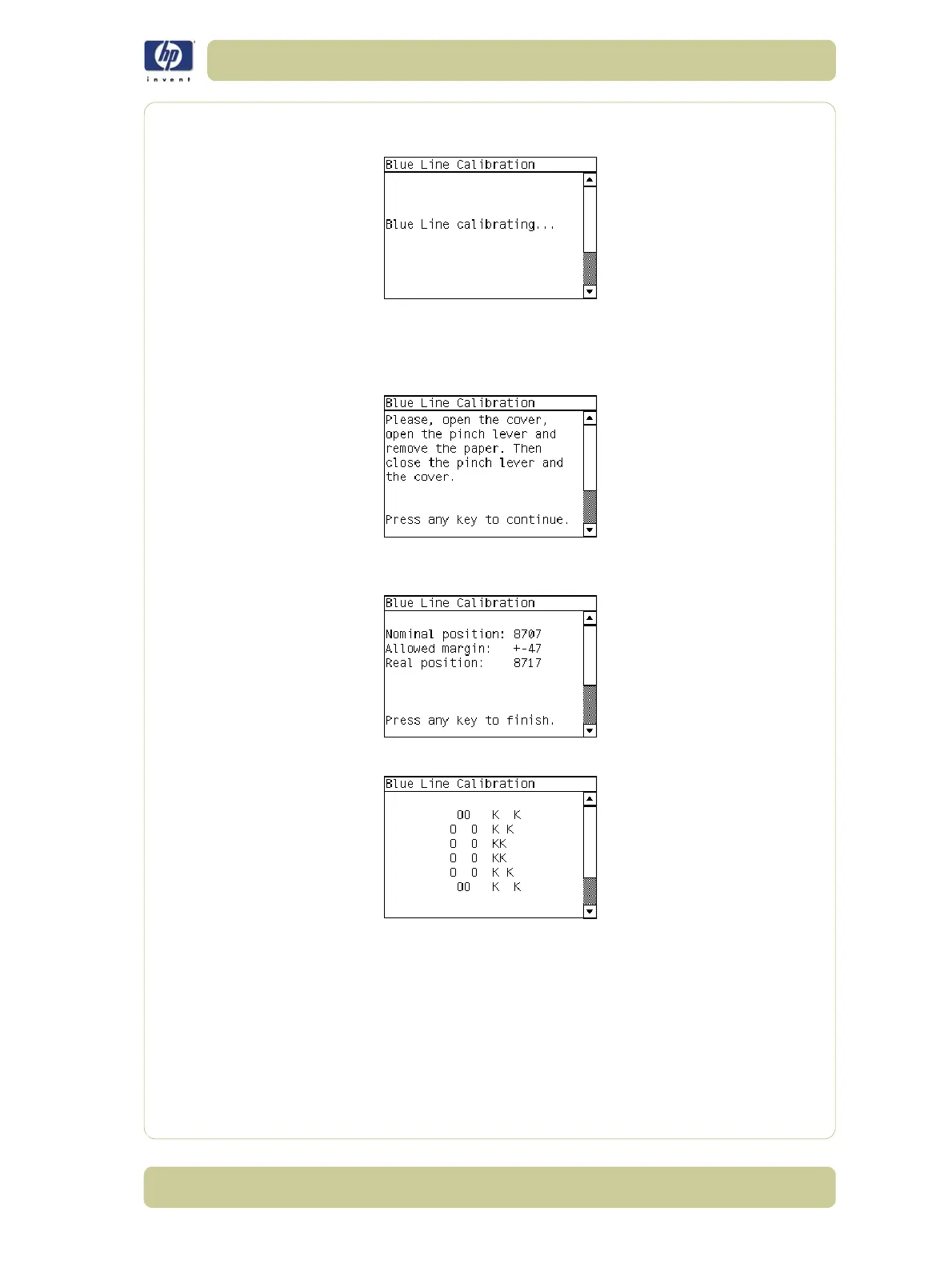

4 The Printer will start to calibrate the Blue Line and the following message will
be displayed on the Front Panel.
5 Once the Blue Line has been calibrated, the following message will be
displayed on the Front Panel. Open the Window and remove the sheet of
media that you had placed on the Print Platen. Press any key on the Front
Panel to continue once the sheet of media has been removed.
6 The results of the calibration will be displayed on the Front Panel. Press any
key on the Front Panel to finish the calibration.
7 Once the calibration is completed, OK will be displayed on the Front Panel.
