Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Cutter Assembly
Removal

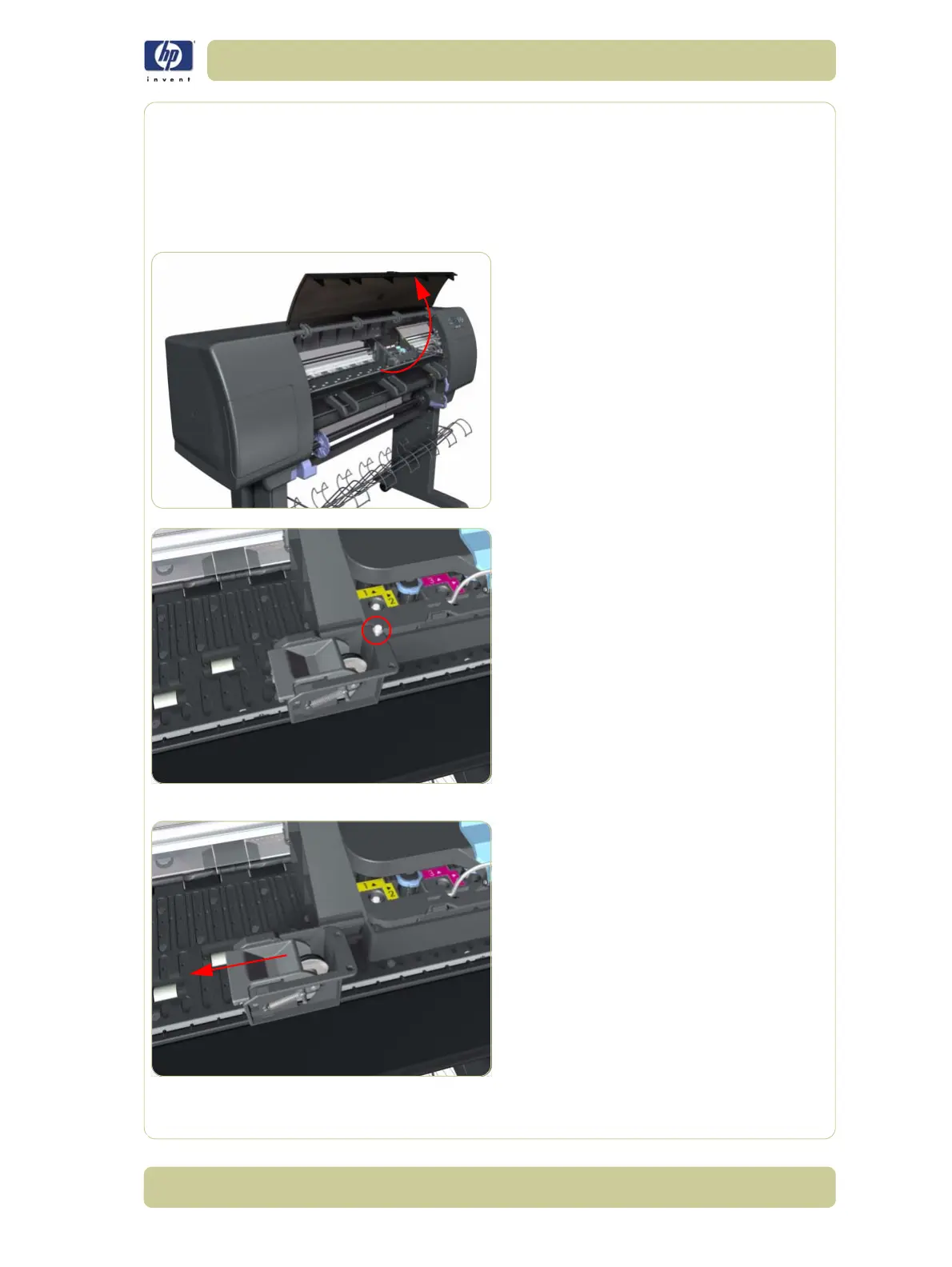

1. Select "Replace Cutter" from Service Menu
(refer to Chapter 4) and follow the
instructions on the Front Panel.
2. Open the Window.
3. Remove one T-15 screw (Type G) that
secures the Cutter Assembly to the
Carriage Assembly.
4. Slide the Cutter Assembly to the left and
remove from the Printer.
