Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Front Panel
Removal

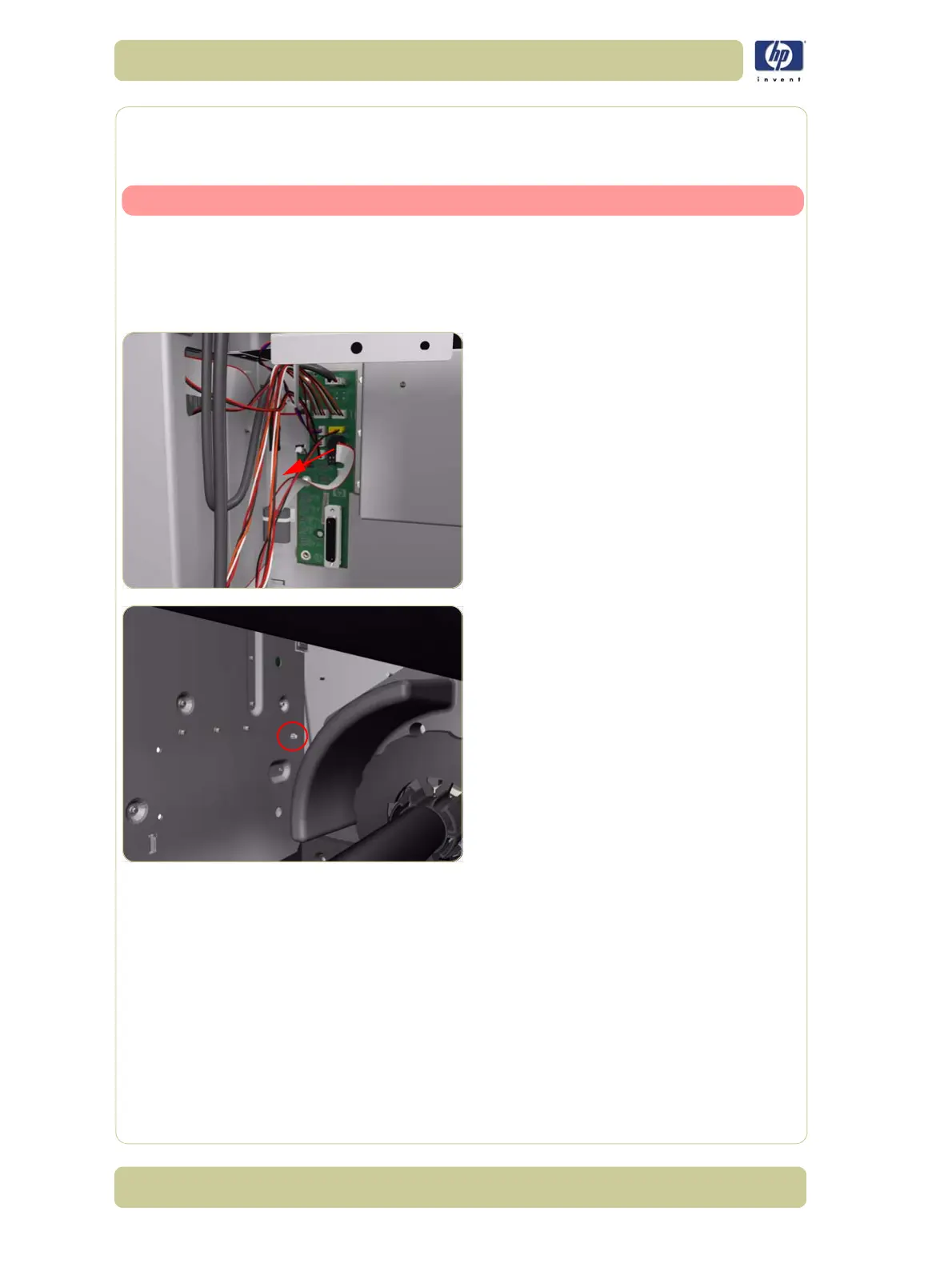

Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.
2. Remove the Rear Door
⇒
Page 8-16.
3. Remove the Right Connector Cover
⇒
Page
8-18.
4. Disconnect the Front Panel Cable from the
Interconnect PCA.
5. Disconnect the Ferrite clip (located on the
rear of the Electronics Module) from the
front of the Printer.
To Next Page
