Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Most Left Spittoons
Removal
Switch off the product and remove the power cable.
1. Remove the Left Cover
⇒
Page 8-9
.

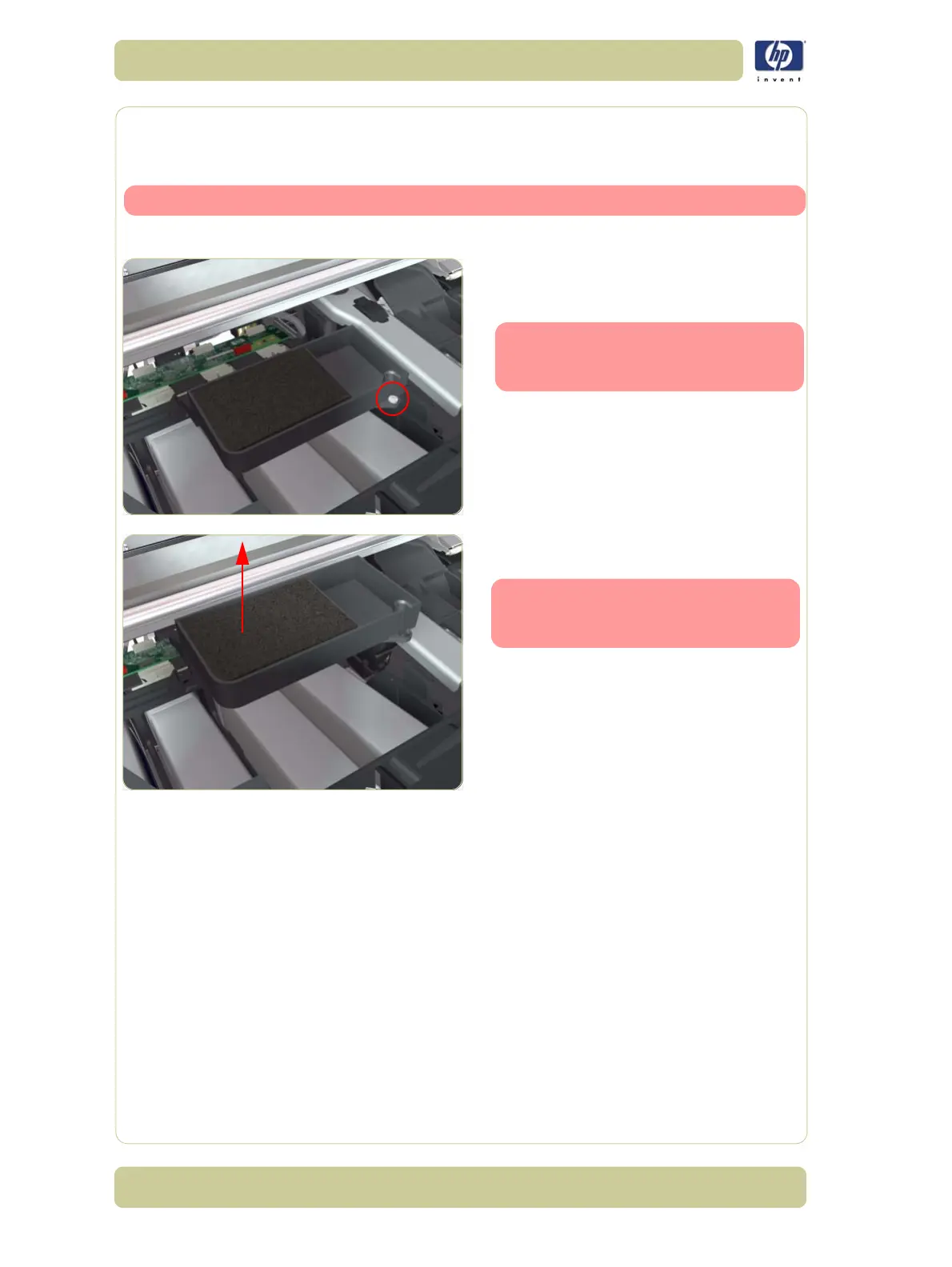

2. Remove one T-15 screw (Type G) that
secures the Most Left Spittoons to the Ink
Supply Station.
Use a Screwdriver with a small
head so that the screw can be
removed easily.
3. Remove the Most Left Spittoons from the
Printer.
After installing the NEW Most Left
Spittoons, make sure you perform
the following Service Utility:
Reset life counter most left spittoon
⇒
Chapter 4.
