Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

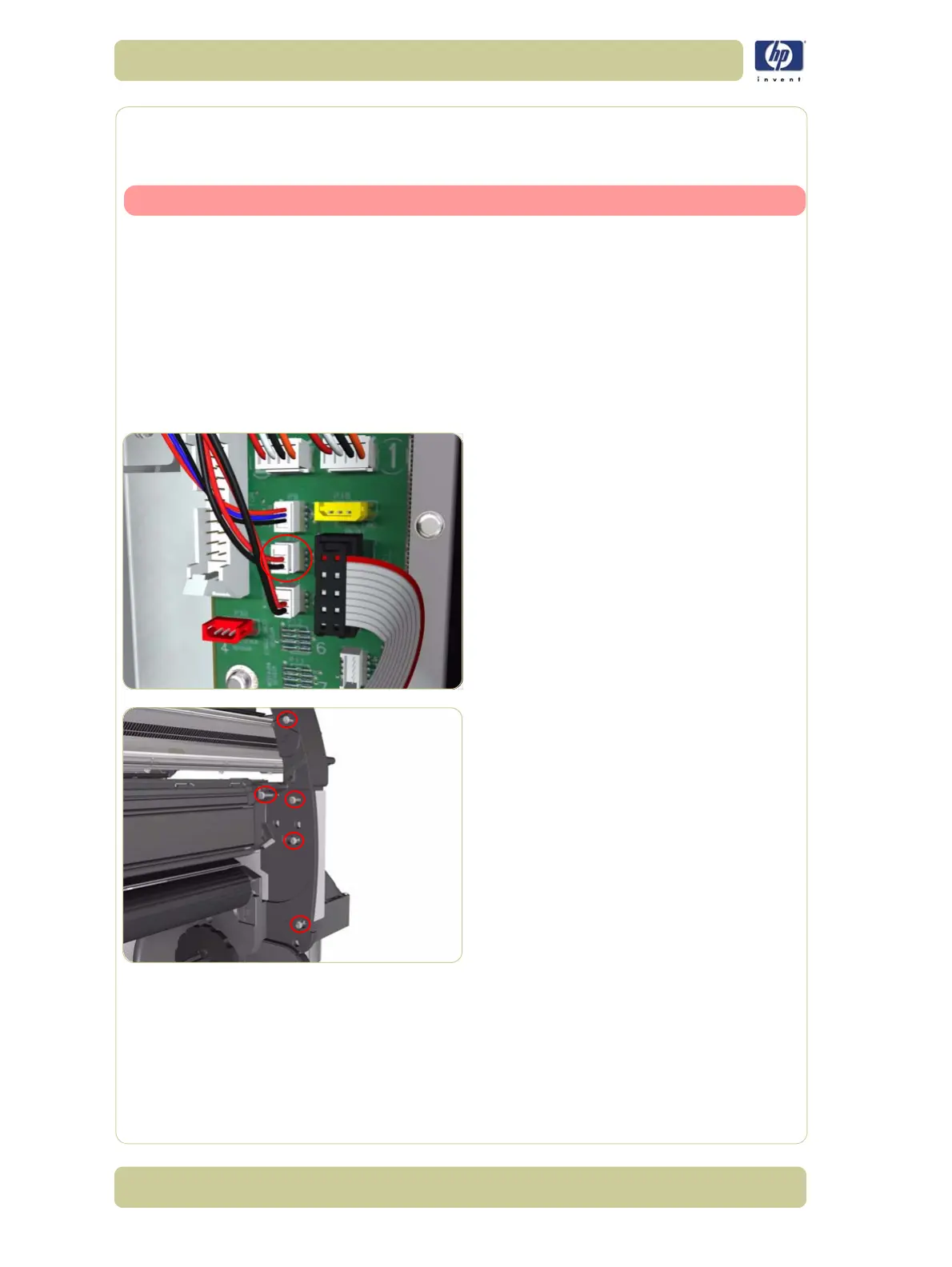

Media Lever Sensor
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒ Page 8-6 .
2. Remove the Rear Door
⇒ Page 8-16.
3. Remove the Right Connector Cover ⇒ Page
8-18.
4. Remove the Service Station ⇒ Page 8-23.
5. Remove the Front Platen
⇒ Page 8-127 .
6. Remove the Media Lever and Linkage
⇒
Page 8-140.
7. Disconnect the Media Lever Sensor cable
from the Interconnect PCA.
8. Remove five T-15 screws (Type B) that
secure the Right Trim.
