Service Calibrations
HP Designjet 4000/4020 Printer Series Service Manual
4. Drop Detector Calibration
The purpose of this Service Calibration is to calibrate the Drop Detector
(located in the Service Station) in relation to the Carriage Assembly.
Perform the Drop Detector Calibration whenever:
îš„ Drop Detector is disassembled or replaced.
Perform the Drop Detector Calibration as follows:

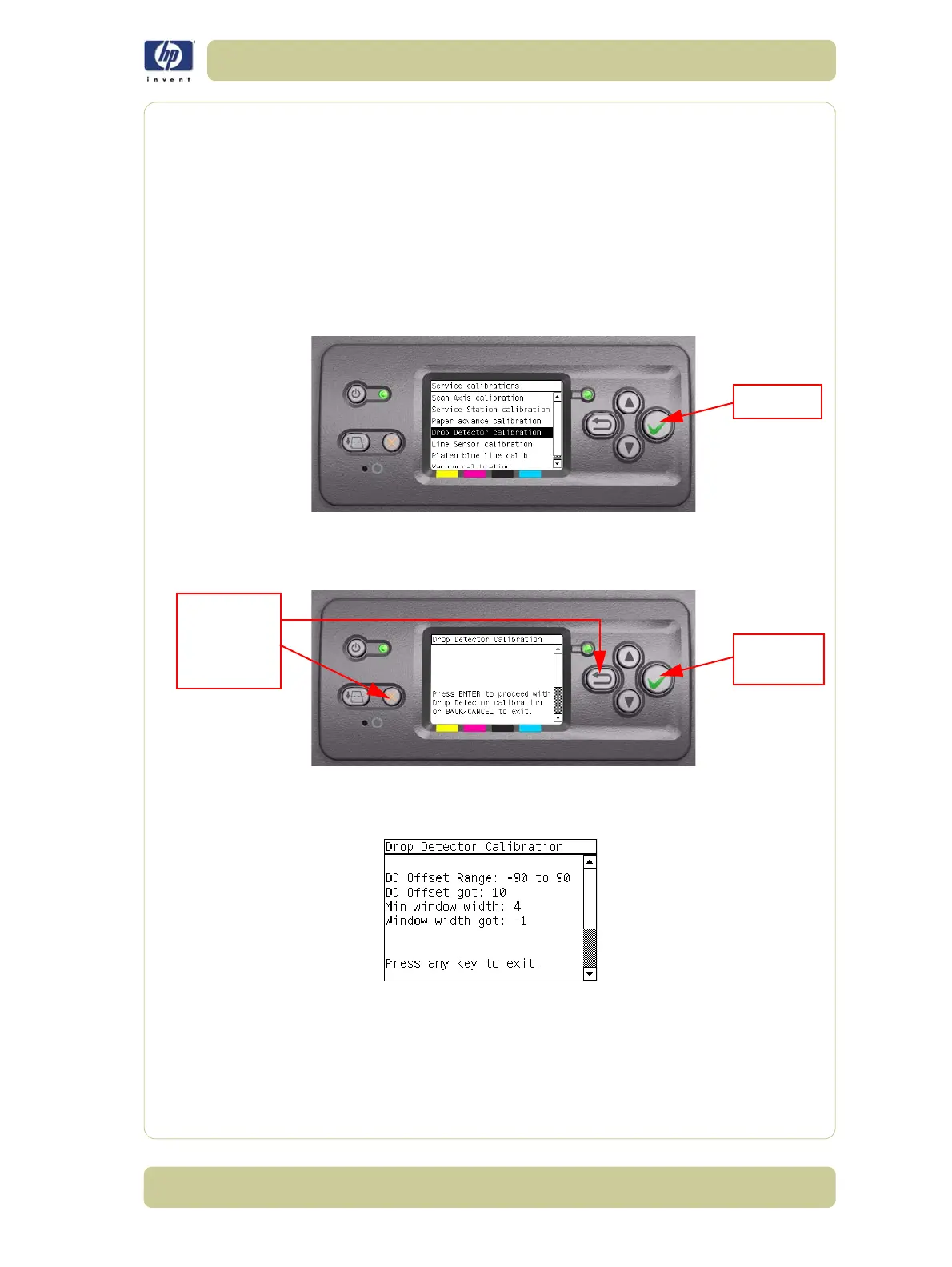

1 In the Service Calibrations submenu, scroll to "Drop Detector Calibration"
and press Enter.
2 When the following message appears on the front panel, you must select
whether you would like to continue with the calibration by pressing the
Enter key. Press Back or Cancel to exit the calibration.
3 The Printer will start to calibrate the Drop Detector. Once the Drop Detector
has been calibrated, the results will be displayed on the Front Panel. Press
any key on the Front Panel to finish the calibration.
4 Once the calibration is completed, OK will be displayed on the Front Panel.
Press Cancel
or the
Back key
Press Enter
to Exit
to proceed
