8-135
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Media Sensor
Removal
Switch off the product and remove the power cable.
1. Remove the Rear Door
⇒
Page 8-16
.
2. Remove the Right Connector Cover
⇒
Page
8-18.

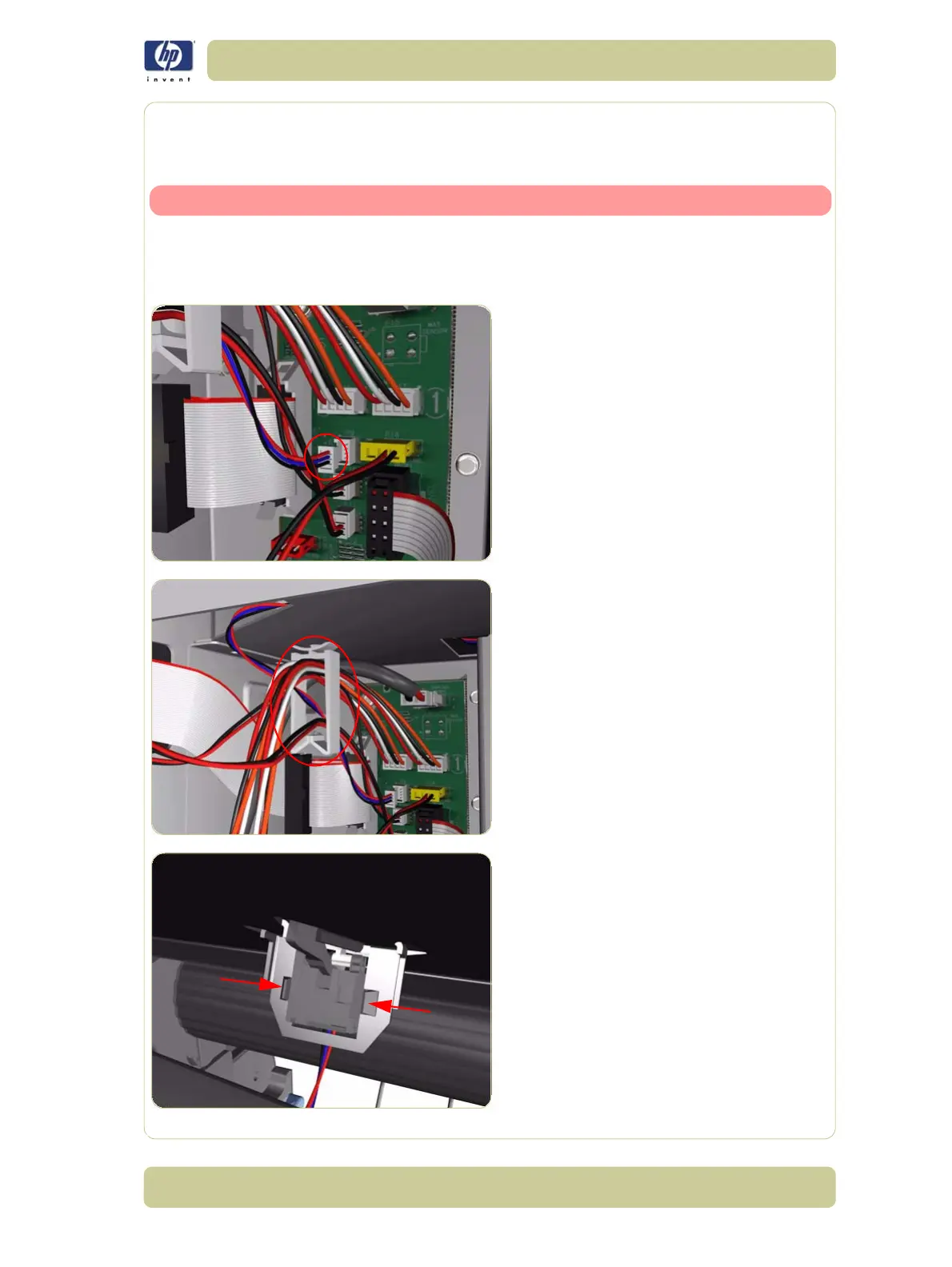

3. Disconnect the Media Sensor cable from
the Interconnect PCA.
4. Release the Media Sensor cable from the
clip located on the Electronics Module.
5. Unclip the Media Sensor from the Center
Guide.
