Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Drop Detector
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.

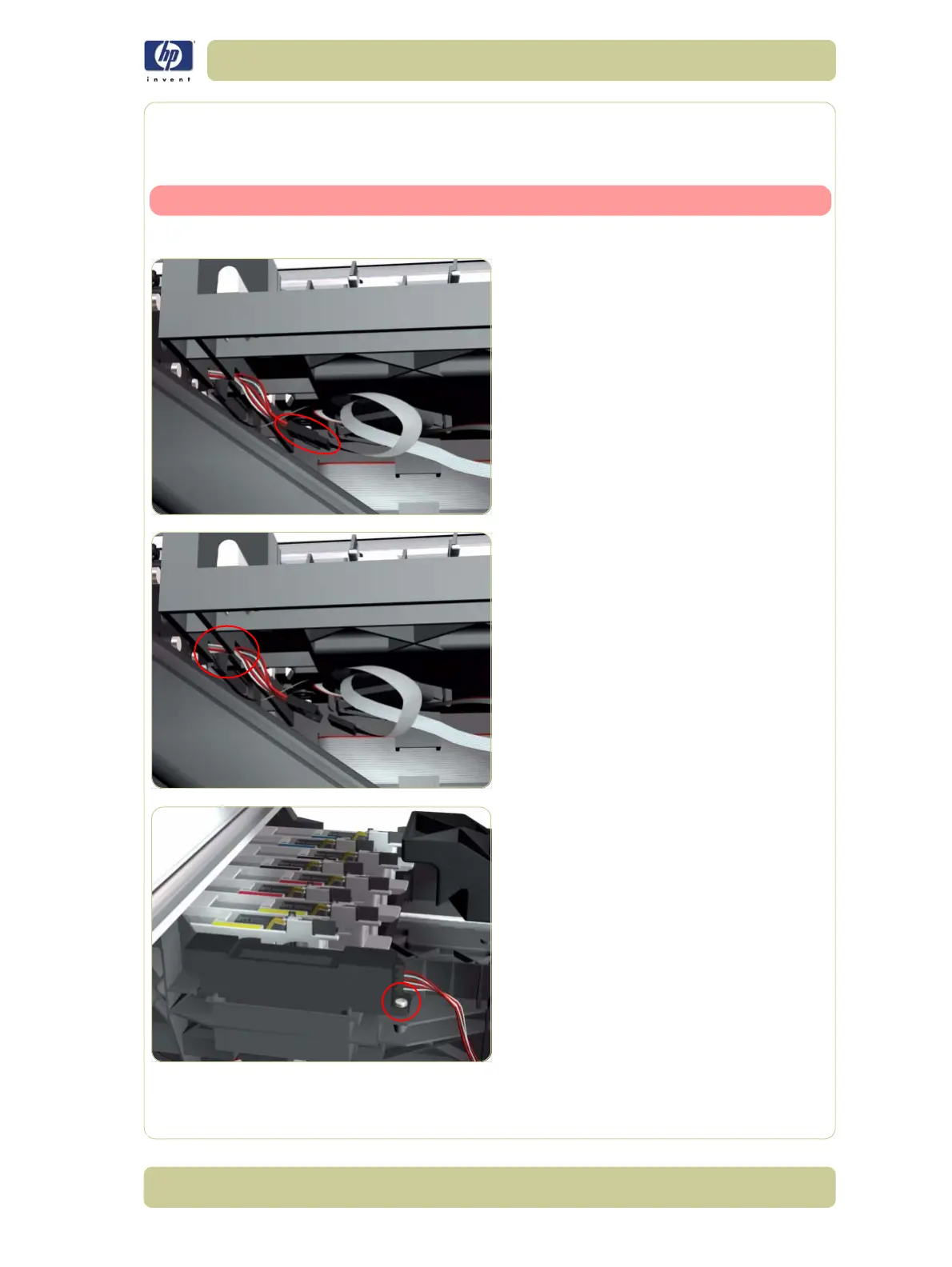

2. Disconnect the Drop Detector Cable from
the Service Station Cable.
3. Release the Drop Detector Cable from the
Service Station.
4. Remove one T-8 screw (Type K) that
secures the Drop Detector to the Service
Station.
