8-87
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Belt Assembly
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.
2. Remove the Left Cover
⇒
Page 8-9.
3. Remove the Top Cover
⇒
Page 8-11
.
4. Remove the Encoder Strip
⇒
Page 8-72
.
5. Remove the Carriage Assembly
⇒
Page 8-
82
.

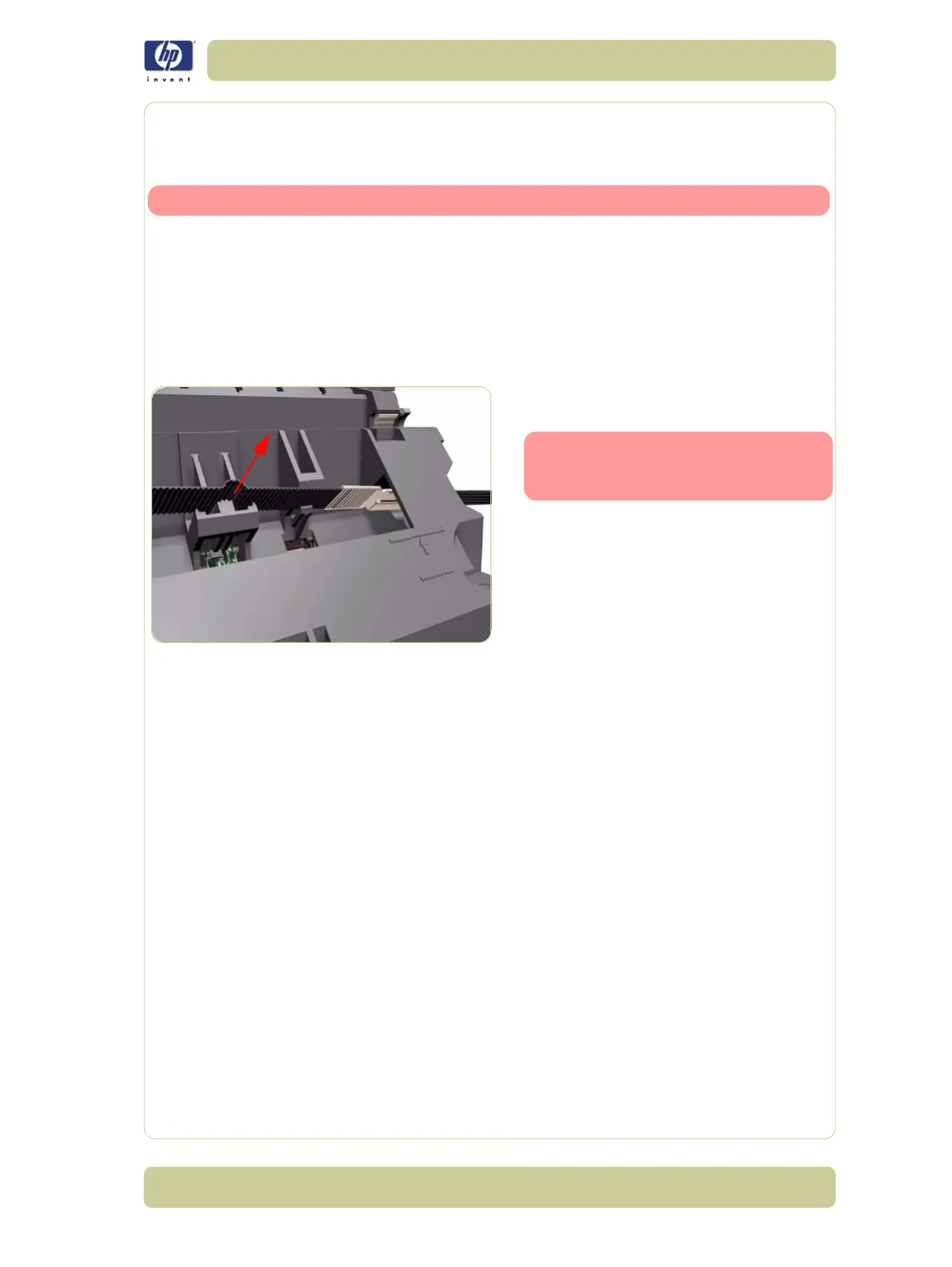

6. Release the Belt from the bottom of the
Carriage Assembly.
After installing the NEW Belt
Assembly, make sure you perform
the following Service Utility:
îš„ Reset life counter scan cycles belt
⇒
Chapter 4.
To Next Page
