Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

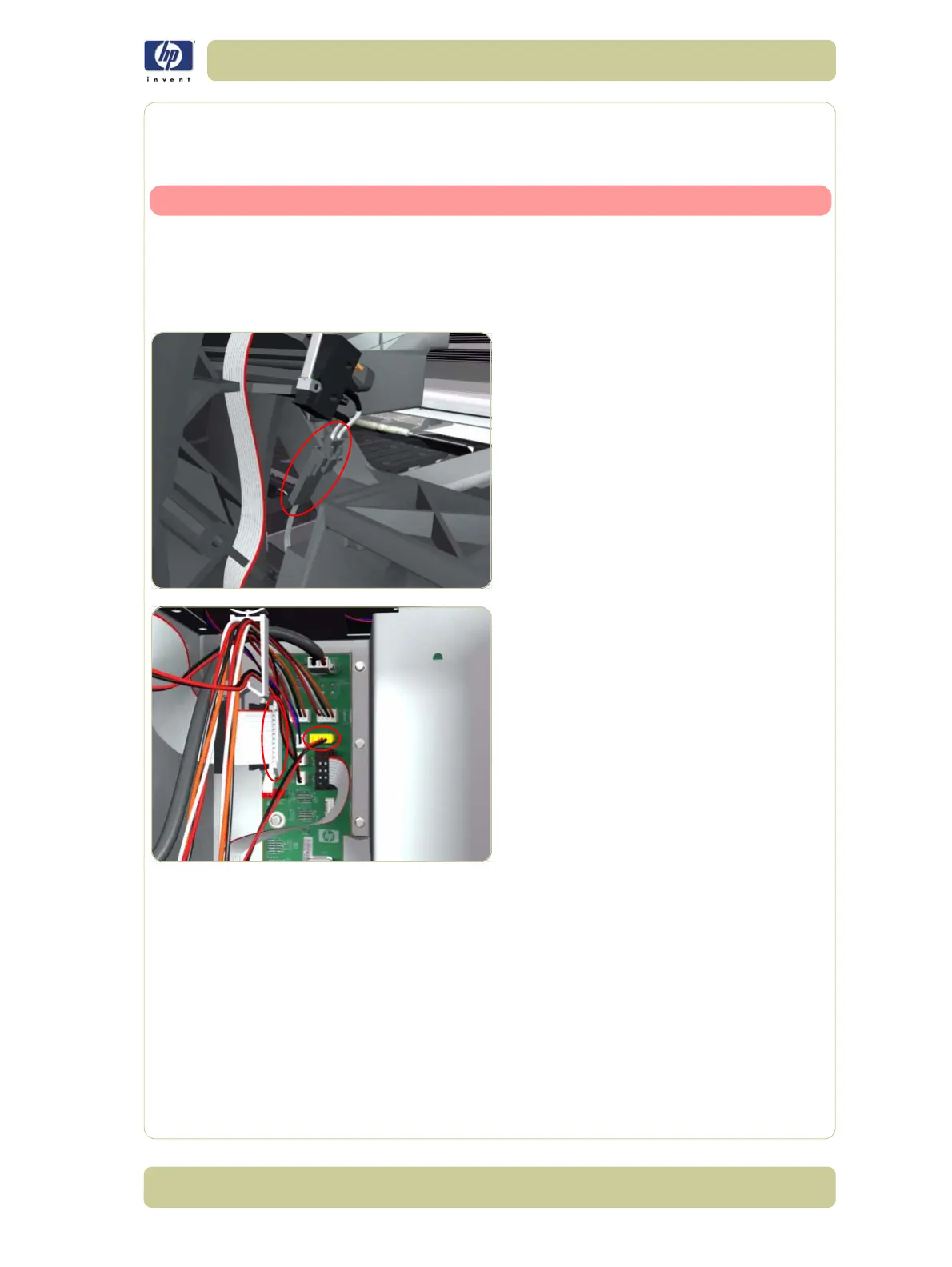

Service Station
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.
2. Remove the Rear Door
⇒
Page 8-16.
3. Remove the Right Connector Cover
⇒
Page
8-18.
4. Disconnect the cable from the Printhead
Cleaner Door Switch.
5. Disconnect the Service Station and Aerosol
Fan Cables from the Interconnect PCA.
