8-91
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

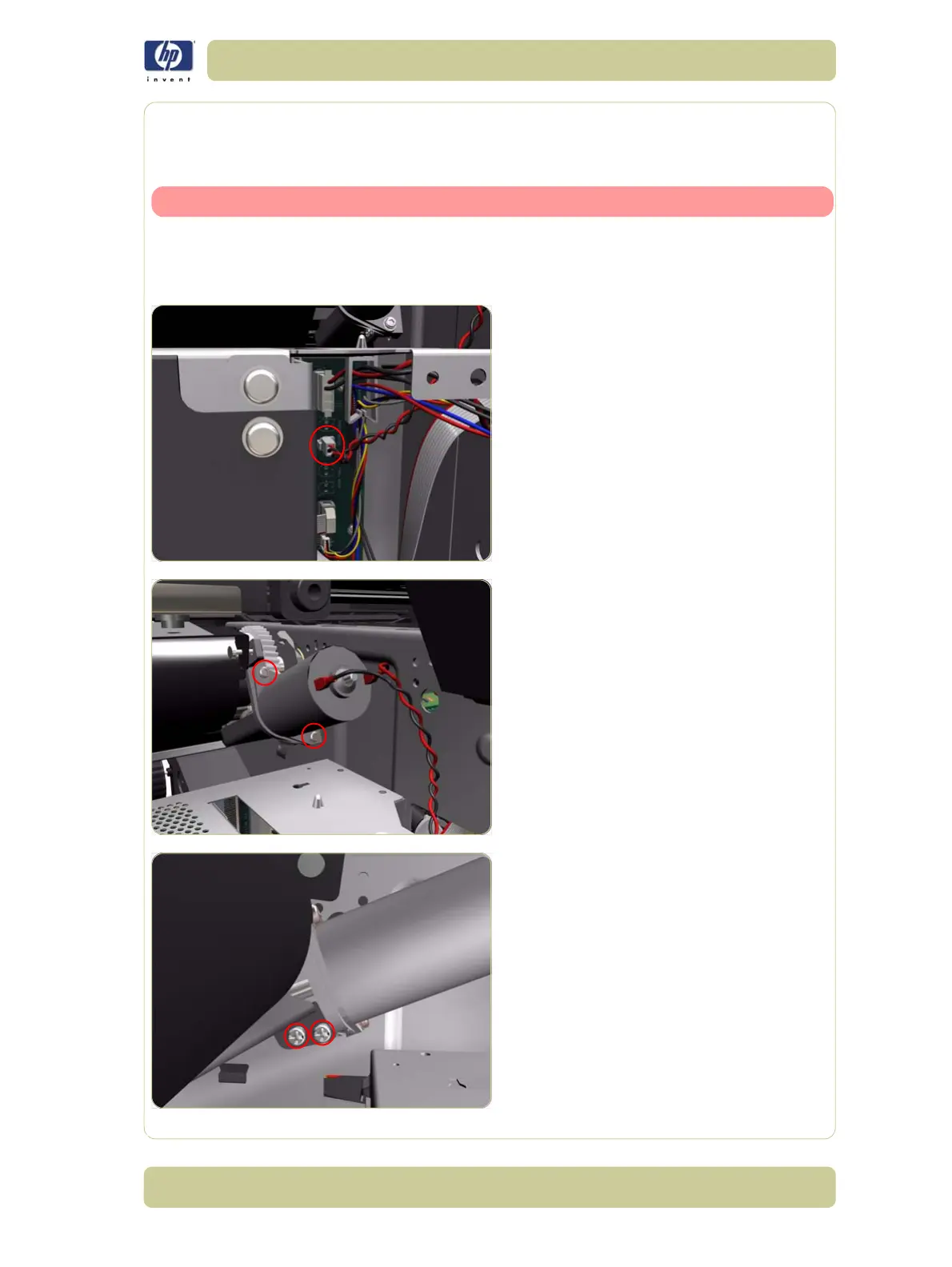

Media-Axis Motor
Removal
Switch off the product and remove the power cable.
1. Remove the Rear Door
⇒
Page 8-16
.
2. Remove the Left Connector Cover
⇒
Page
8-19.
3. Disconnect the Media-Axis Motor cable
from the PrintMech PCA.
4. Remove two T-15 screws (Type R) that
secure the Media-Axis Motor.
5. Loosen two T-20 screws (Type B) that
secure the Media-Axis Motor Bracket.
To Next Page
