8-60
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

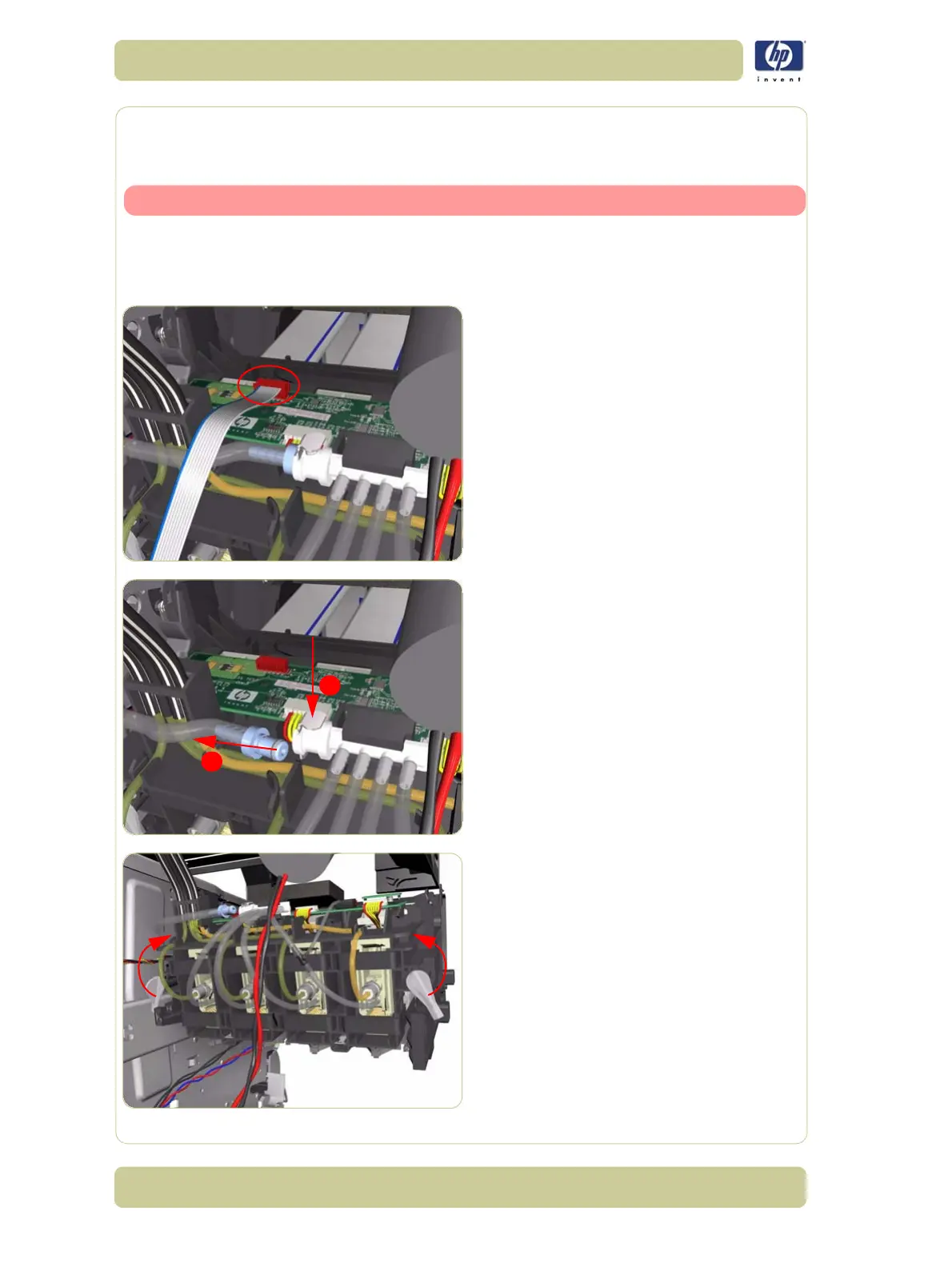

Ink Supply Station (ISS)
Removal
Switch off the product and remove the power cable.
1. Remove the Left Cover
⇒
Page 8-4
.
2. Remove the Left Connector Cover
⇒
Page
8-19
.
3. Disconnect the Electrical Cable from the
rear of the Ink Cartridge Tube Connector.
4. Disconnect the Air Tube from the Ink
Supply Tubes.
5. Twist the 2 latches at the rear of the Ink
Cartridge Tube Connector and release the
complete assembly.
To Next Page
