8-129
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Center Platen
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.
2. Remove the Left Cover
⇒
Page 8-9.
3. Remove the Top Cover
⇒
Page 8-11.
4. Remove the Service Station
⇒
Page 8-23.
5. Remove the Middle Left Spittoons
⇒
Page
8-71.

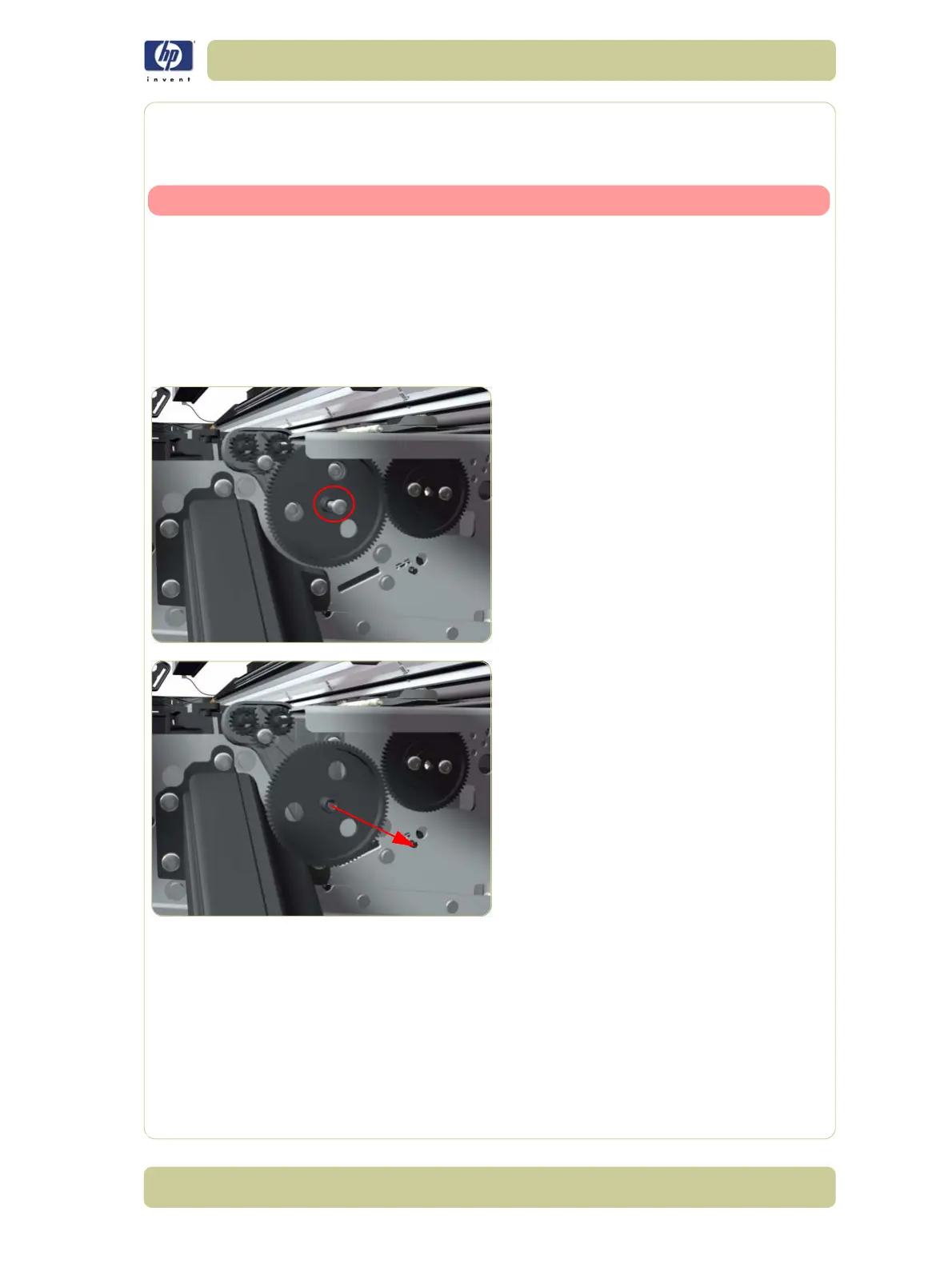

6. Remove one T-15 screw (Type P) that
secures the Center Platen Gear.
7. Remove the Center Platen Gear from the
Printer.
To Next Page
