Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Installation for printers with the serial numbers SG6A9H900Z and
SG6ABH9014 and onwards
The installation procedure is the same as the removal in reverse on this type of printer. Included
below are the most important steps of the installtion procedure for the new style APS.

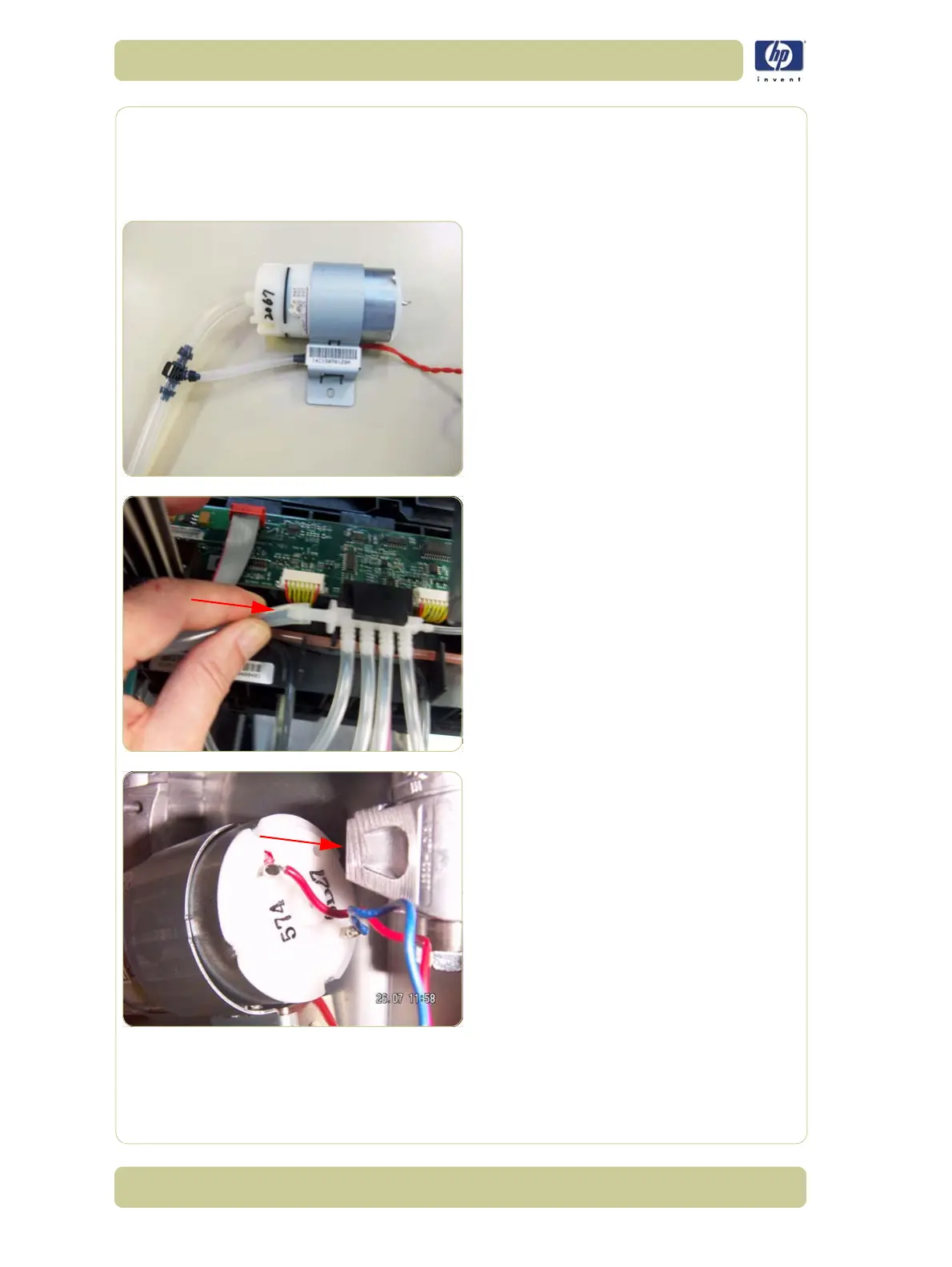

1. The APS Assembly that comes with this kit
is already setup to be installed on printers
with serial number SG6A9H900Z and
SG6ABH9014 and after. You will not need
to change this setup to install it on printers
with this range of serial number.
2. When connecting the Air Tube to the Ink
Supply Tubes, be carefull not to cut your
hand on sharp surfaces. While connecting
the tube, avoid trying to push the tube on
in one go. Twisting the tube while pushing
will reduce the effort required to connect it.
3. When installing the new APS Assembly,
orientate the assembly as shown, so the
cables cannot touch the side plate.
