Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Media Lever Assembly
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.
2. Remove the Rear Door
⇒
Page 8-16.

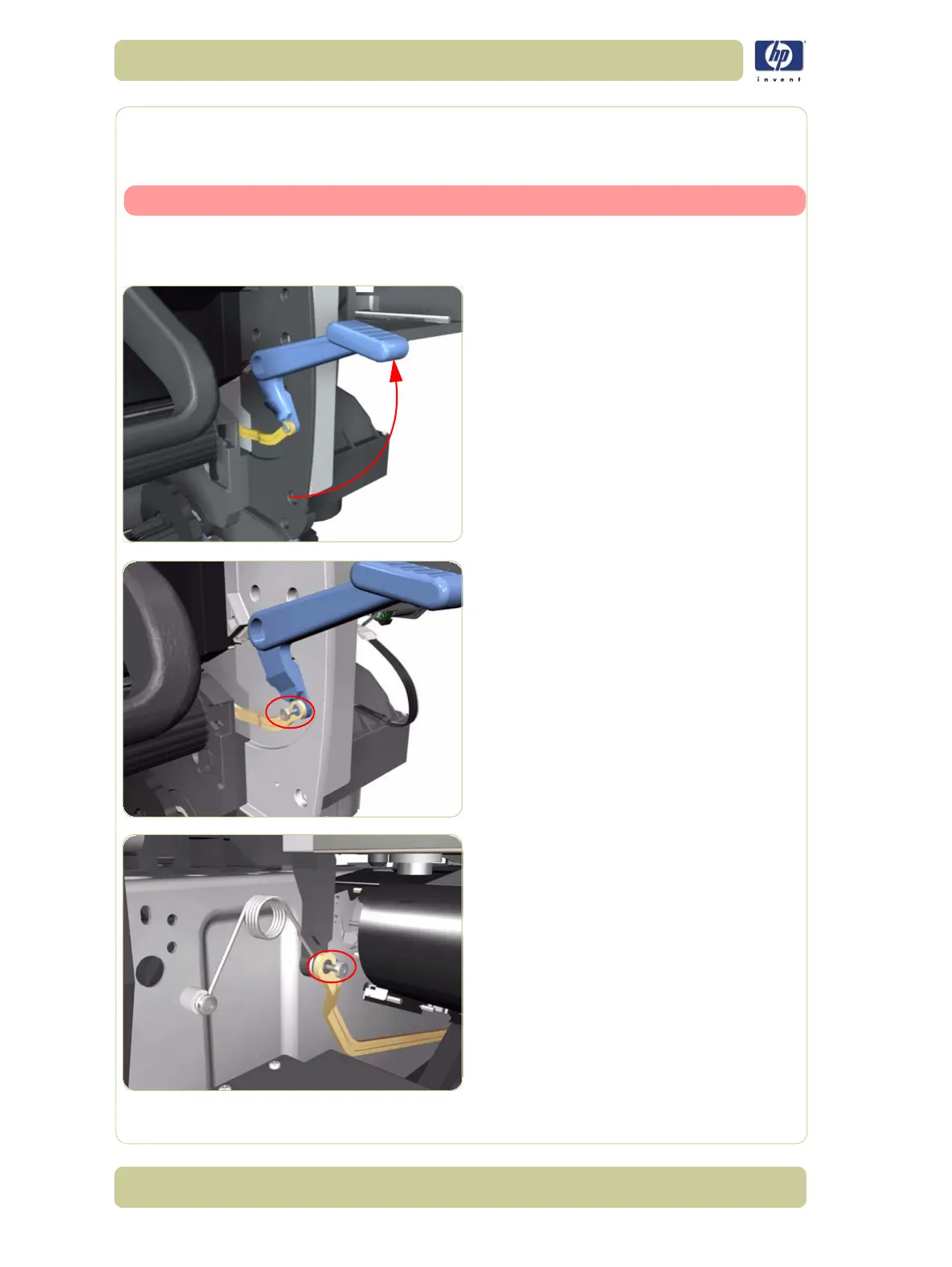

3. Raise the Media Lever.
4. Remove one T-15 screw (Type F) that
secures the Media Lever to the Linkage.
5. Remove one T-15 screw (Type F) that
secures the Linkage to the Spring.
