8-29
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Aerosol Fan
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.
2. Remove the Rear Door
⇒
Page 8-16.
3. Remove the Right Connector Cover
⇒
Page
8-18.
4. Remove the Service Station
⇒
Page 8-23.

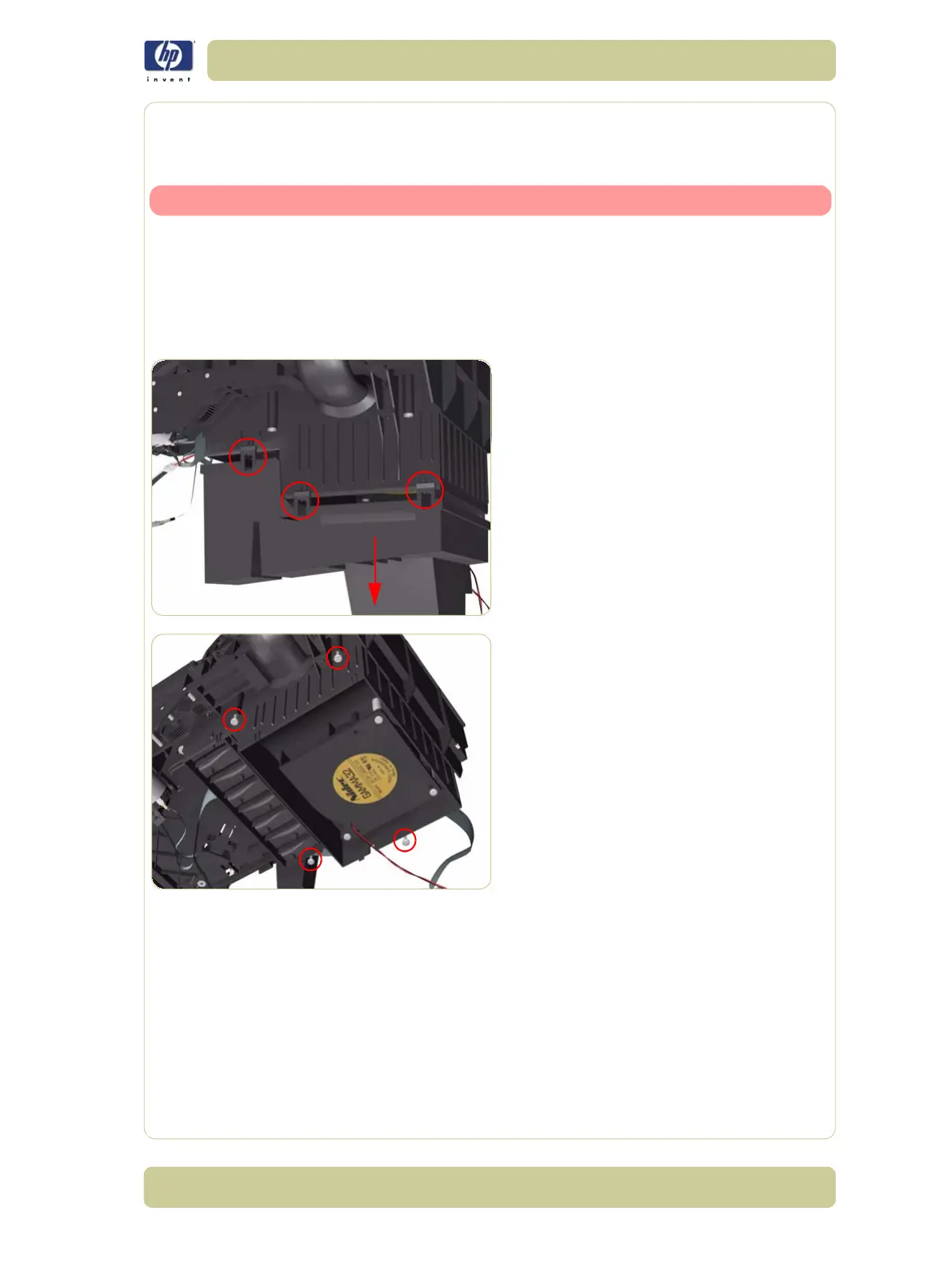

5. Unclip the bottom cover from the Aerosol
Fan.
6. Remove four T-15 screws (Type G) that
secure the Aerosol Fan to the Service
Station.
To Next Page
