8-75
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

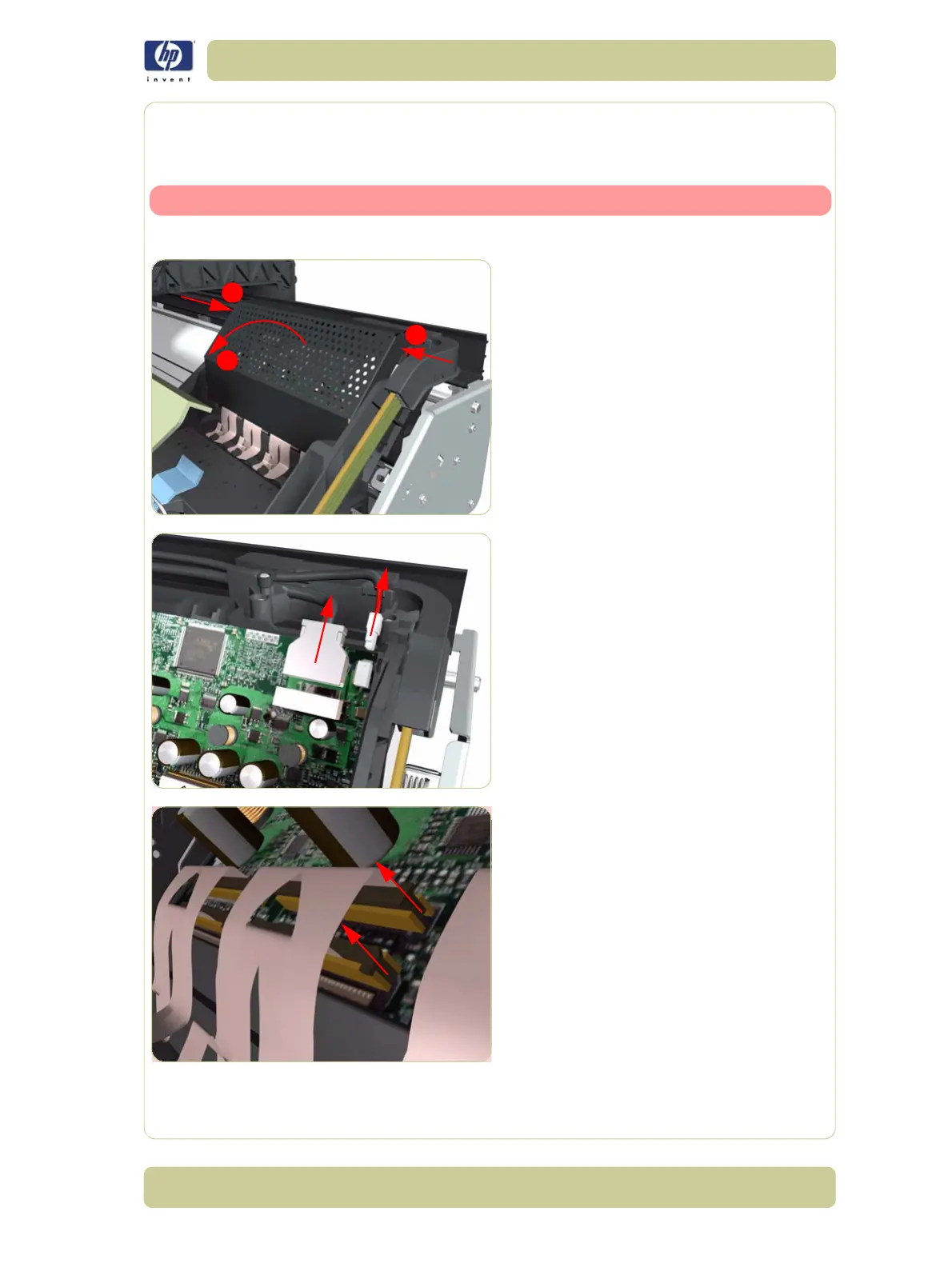

Carriage PCA
Removal
Switch off the printer and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6.
2. Press the two side of the Carriage PCA
Cover and unclip from the Carriage
Assembly.
3. Disconnect the Trailing Cable from the
Carriage PCA.
4. Release the ALL the clips, securing the
Carriage Flex Cables to the Carriage PCA,
by pulling upwards.
To Next Page
