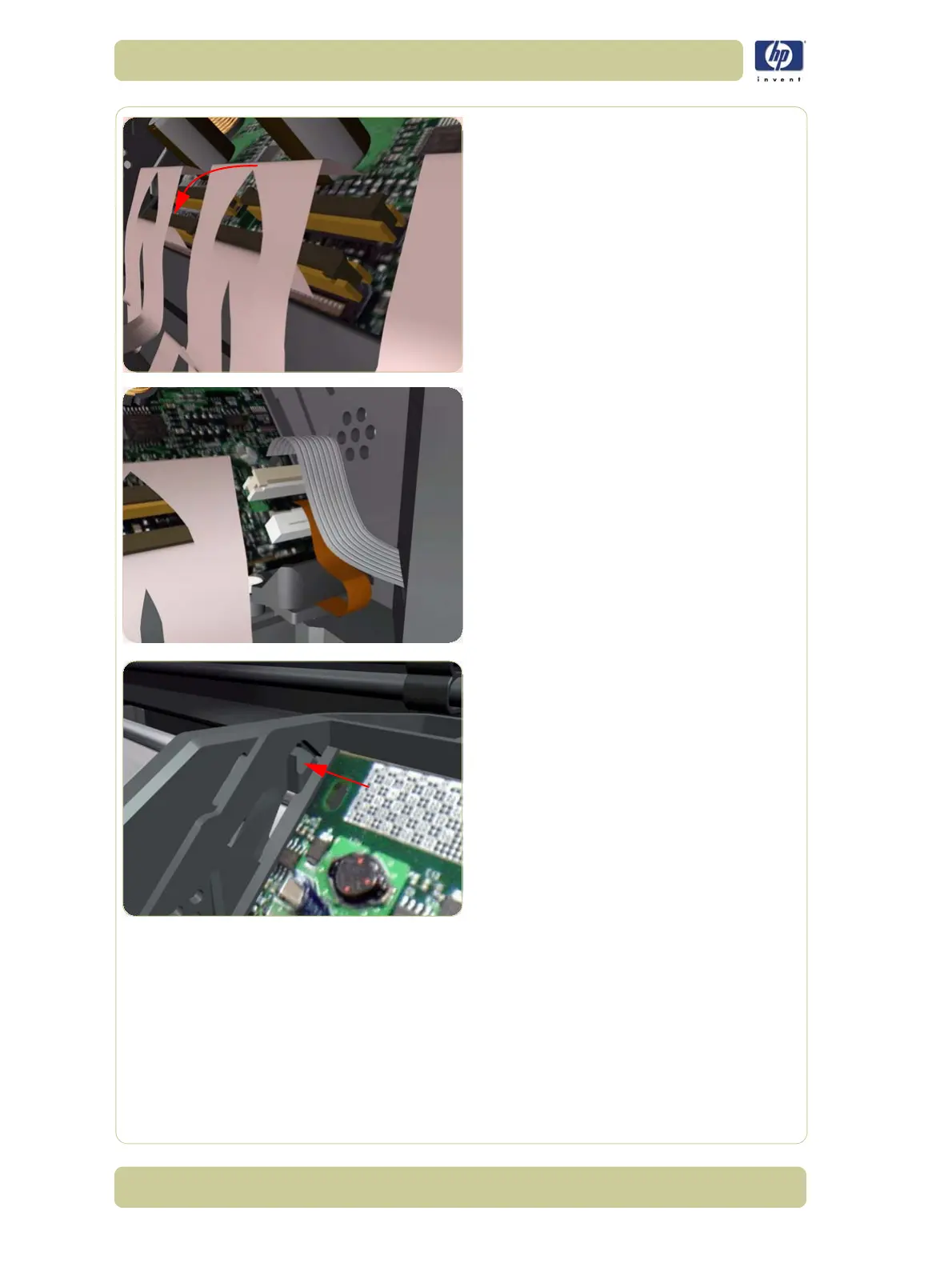

5. Disconnect the Flex Cables from the
Carriage PCA.
6. Disconnect the Line Sensor Cable and the
Encoder Sensor Cable from the Carriage
PCA.
7. Push inwards the four clips that secure the
Carriage PCA.
