HP 4000 - Center Guide; Removal

8-149
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Center Guide
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒ Page 8-6 .
2. Remove the Left Cover
⇒ Page 8-9.
3. Remove the Right Connector Cover ⇒ Page
8-18.
4. Remove the Left Connector Cover ⇒ Page
8-19.
5. Remove the Service Station ⇒ Page 8-23.
6. Remove the Ink Supply Station ⇒ Page 8-
60.
7. Remove the Media Sensor ⇒ Page 8-142.

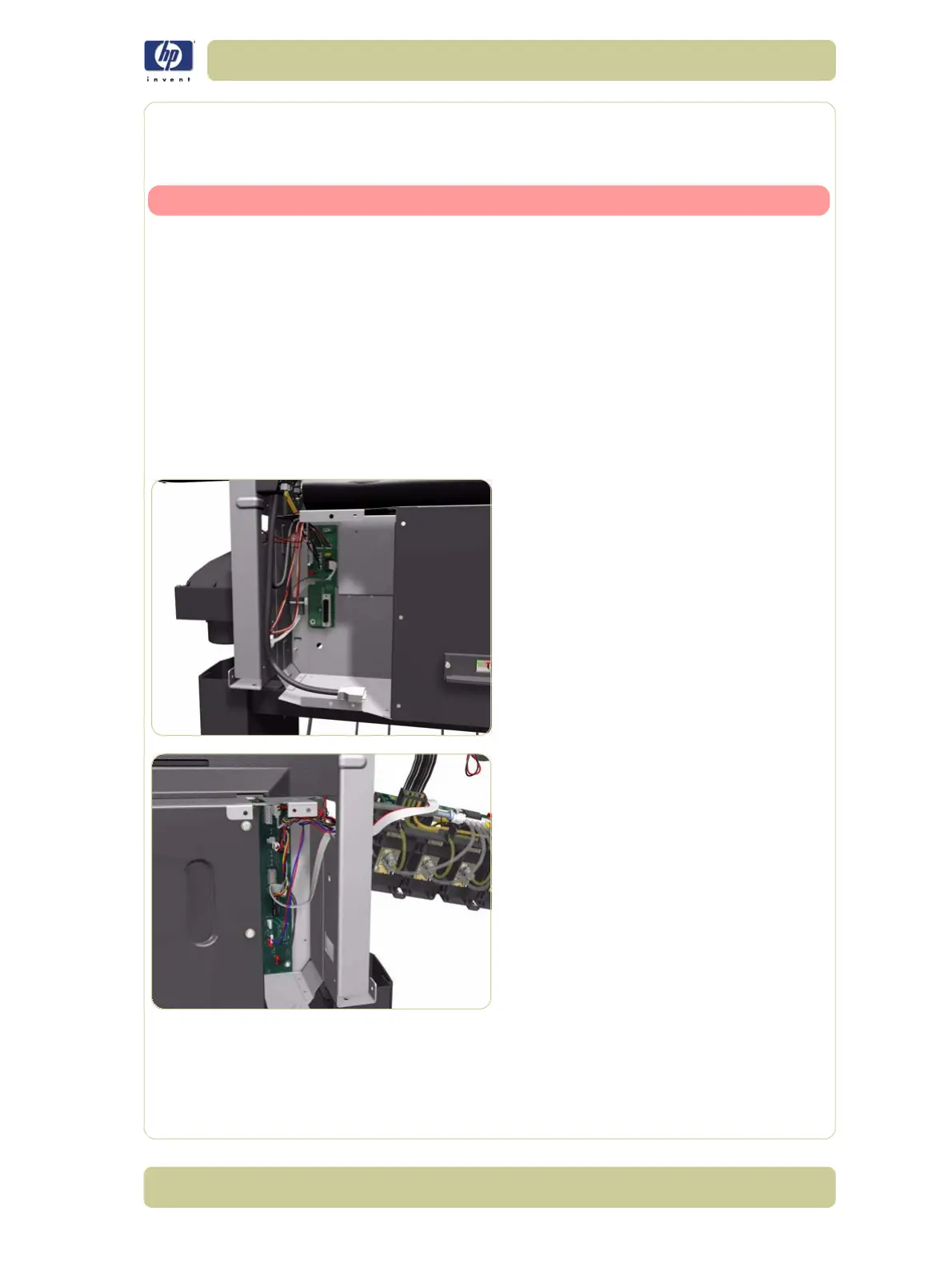

8. Disconnect ALL the cables connected to the
Interconnect PCA and the Gamut PCI PCA.
9. Disconnect ALL the cables connected to the
PrintMech PCA.
