8-33
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Trailing Cables
Removal
Switch off the printer and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6.
2. Remove the Left Cover
⇒
Page 8-9.
3. Remove the Top Cover
⇒
Page 8-11.
4. Remove the Rear Door
⇒
Page 8-16.
5. Remove the Right Connector Cover
⇒
Page
8-18.

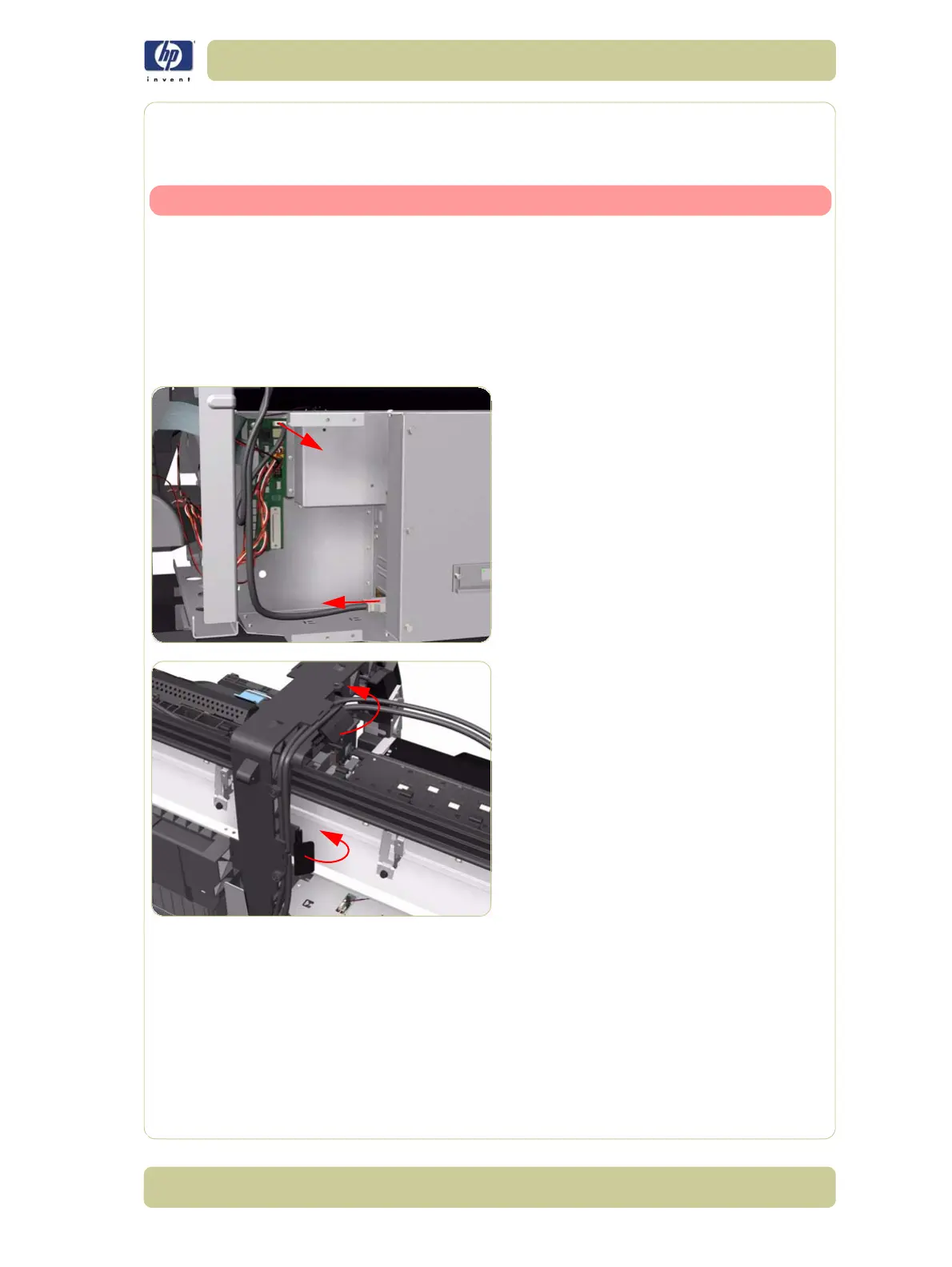

6. Disconnect the Trailing Cable from the
Interconnect PCA and the Gamut PCA.
7. Release the two plastic clips securing the
Trailing Cable and the Carriage Power
Cable.
To Next Page
