Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
Carriage Flex Cables
Removal
Switch off the product and remove the power cable.
1. Remove the Right Cover
⇒
Page 8-6
.

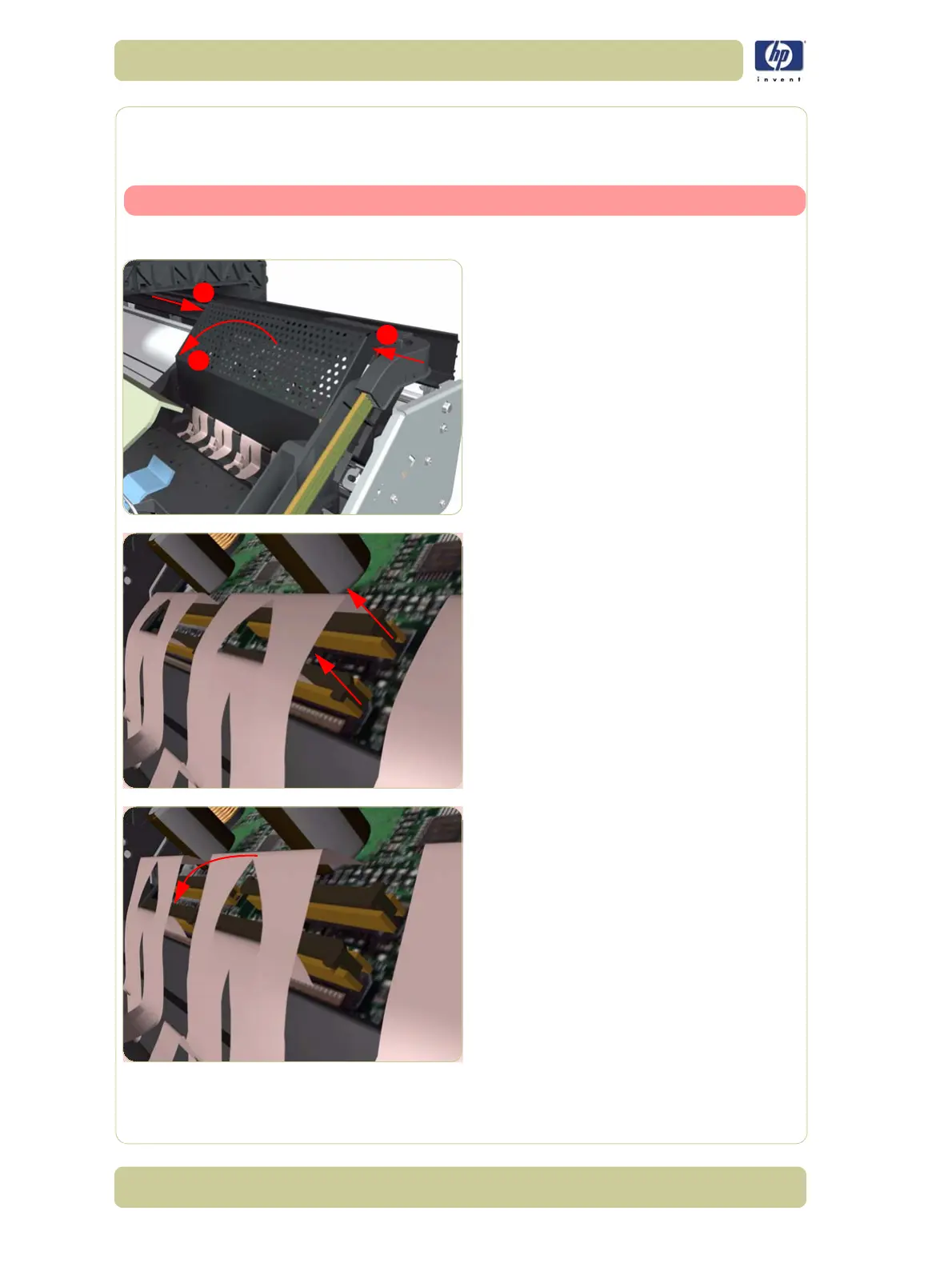

2. Press the two side of the Carriage PCA
Cover and unclip from the Carriage
Assembly.
3. Release the ALL the clips, securing the
Carriage Flex Cables to the Carriage
Assembly, by pulling upwards.
4. Disconnect the Flex Cables from the
Carriage PCA.
