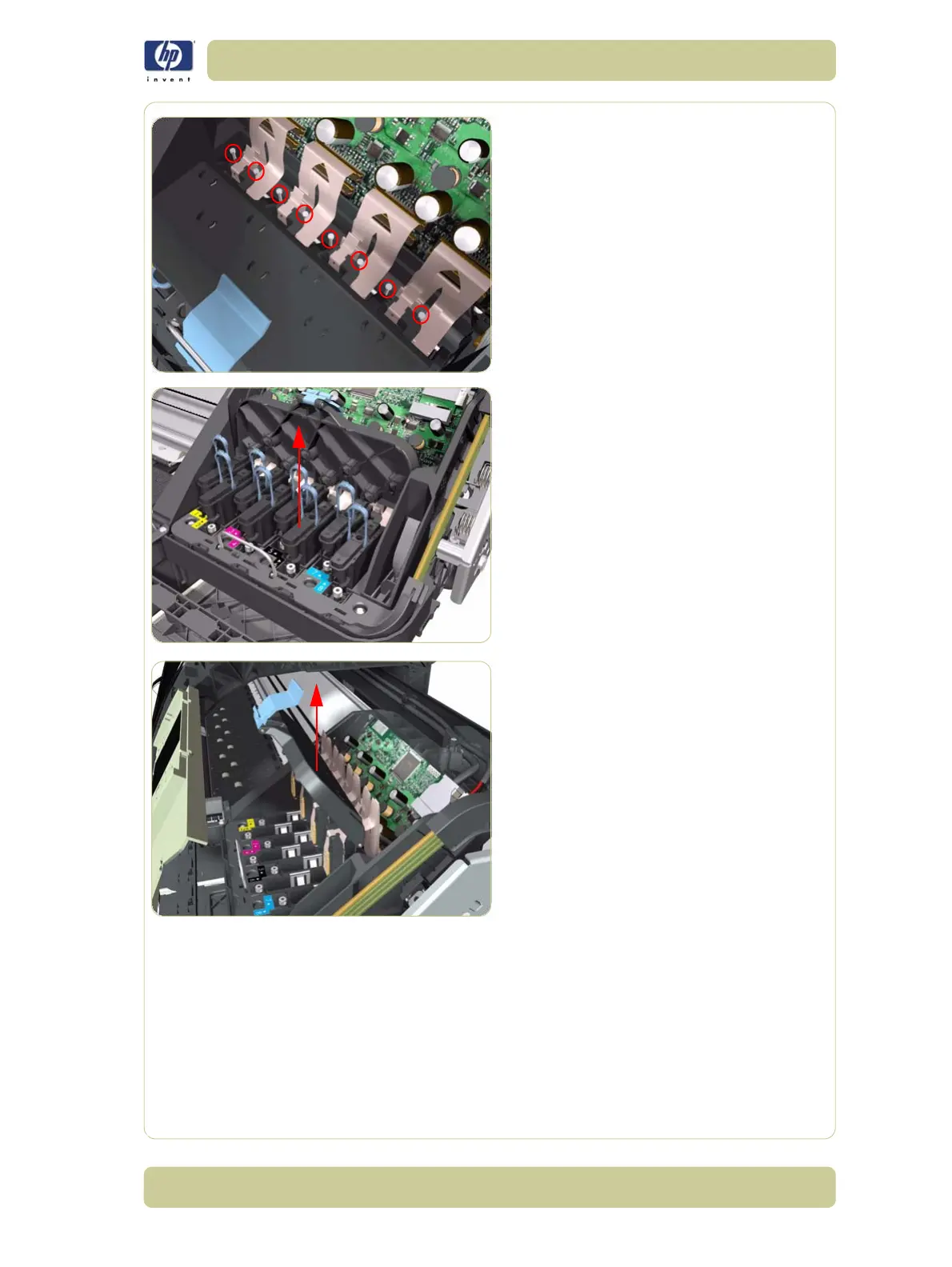

5. Remove eight T-8 screws (Type L) that
secure the Carriage Flex Cables to the
Carriage Assembly.
6. Open the Carriage Cover and remove ALL
the Printheads from the Carriage Assembly.
7. Remove the Carriage Flex Cable from the
Printer.
