Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

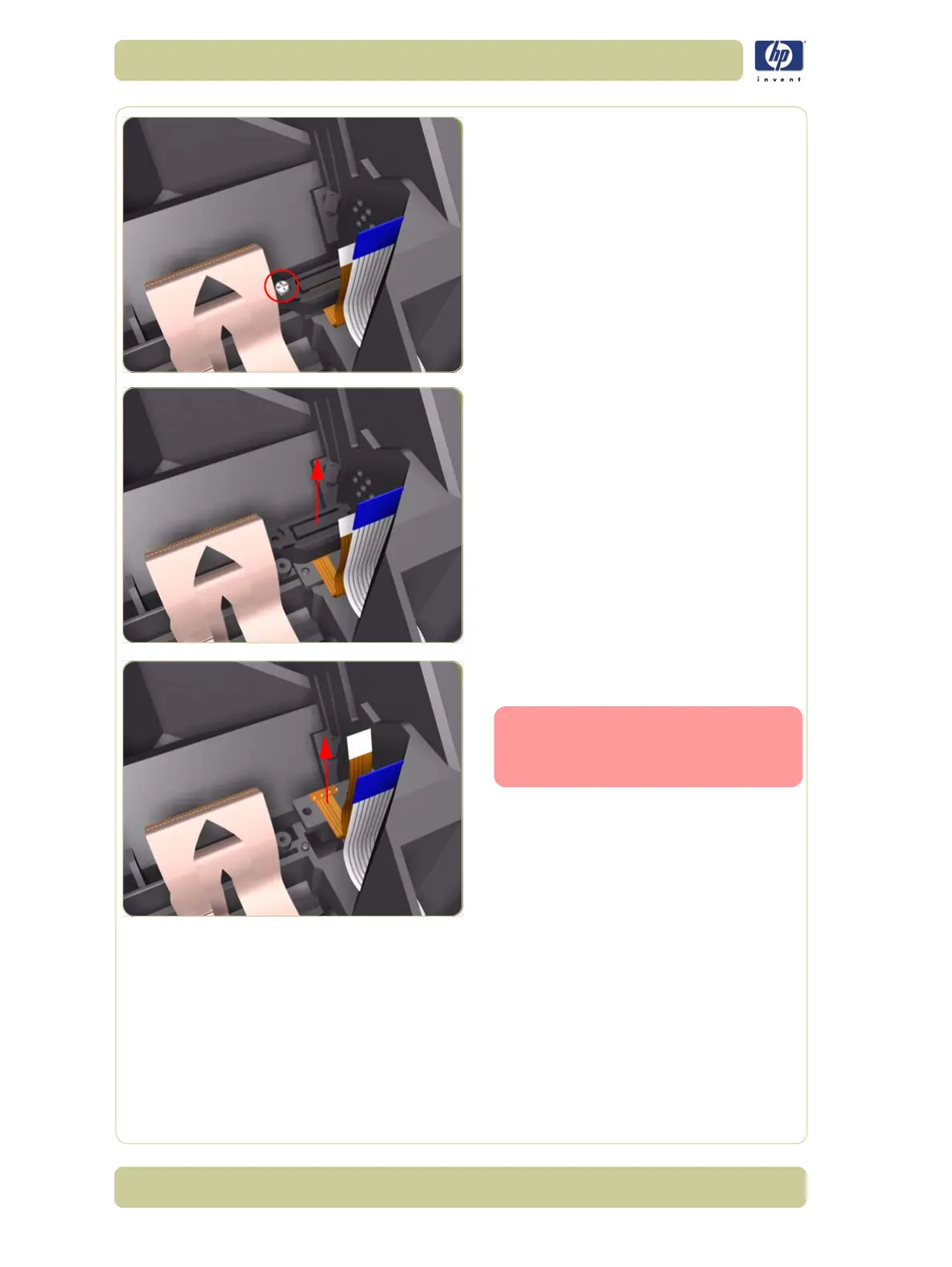

10. Remove one T-8 (Type L) screw that
secures the Encoder Sensor to the Carriage
Assembly.
11 . Remove the plastic cover from the Encoder
Sensor.
12. Remove the Encoder Sensor from the
Printer.
After installing the NEW Encoder
Strip and Encoder Sensor, make
sure you perform the following
Service Calibration:
îš„ Scan-Axis Calibration
⇒
Chapter 5.
