Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

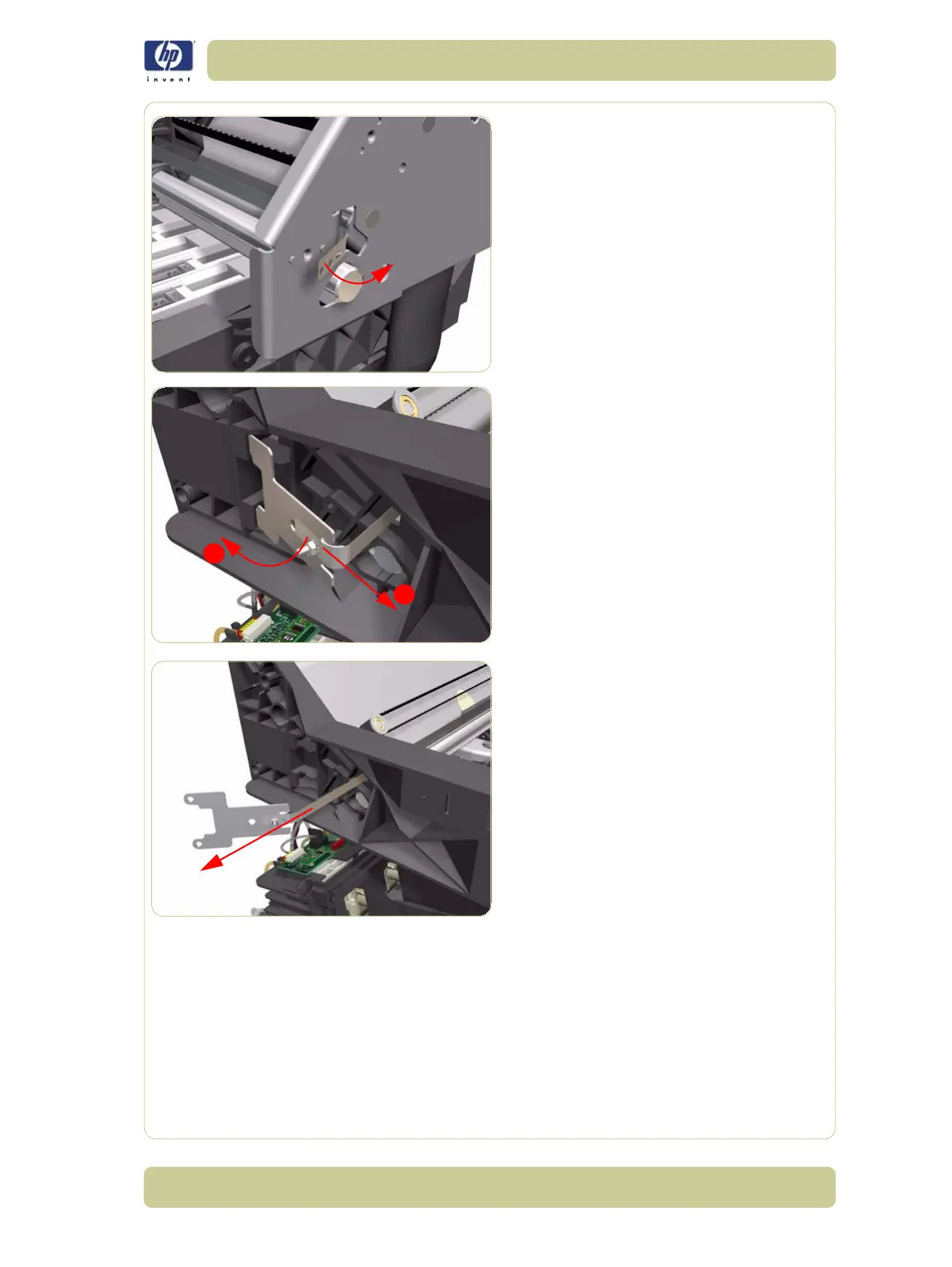

6. Release the Encoder Strip from the locating
pins on the right hand side of the Printer.
7. Release the Spring Clip from the Bracket on
the left hand side of the Printer.
8. Pull the Encoder Strip out of the left hand
side of the Printer.
9. Remove the Carriage PCA
⇒ Page 8-75.
