1-23
Troubleshooting
HP Designjet 4000/4020 Printer Series Service Manual

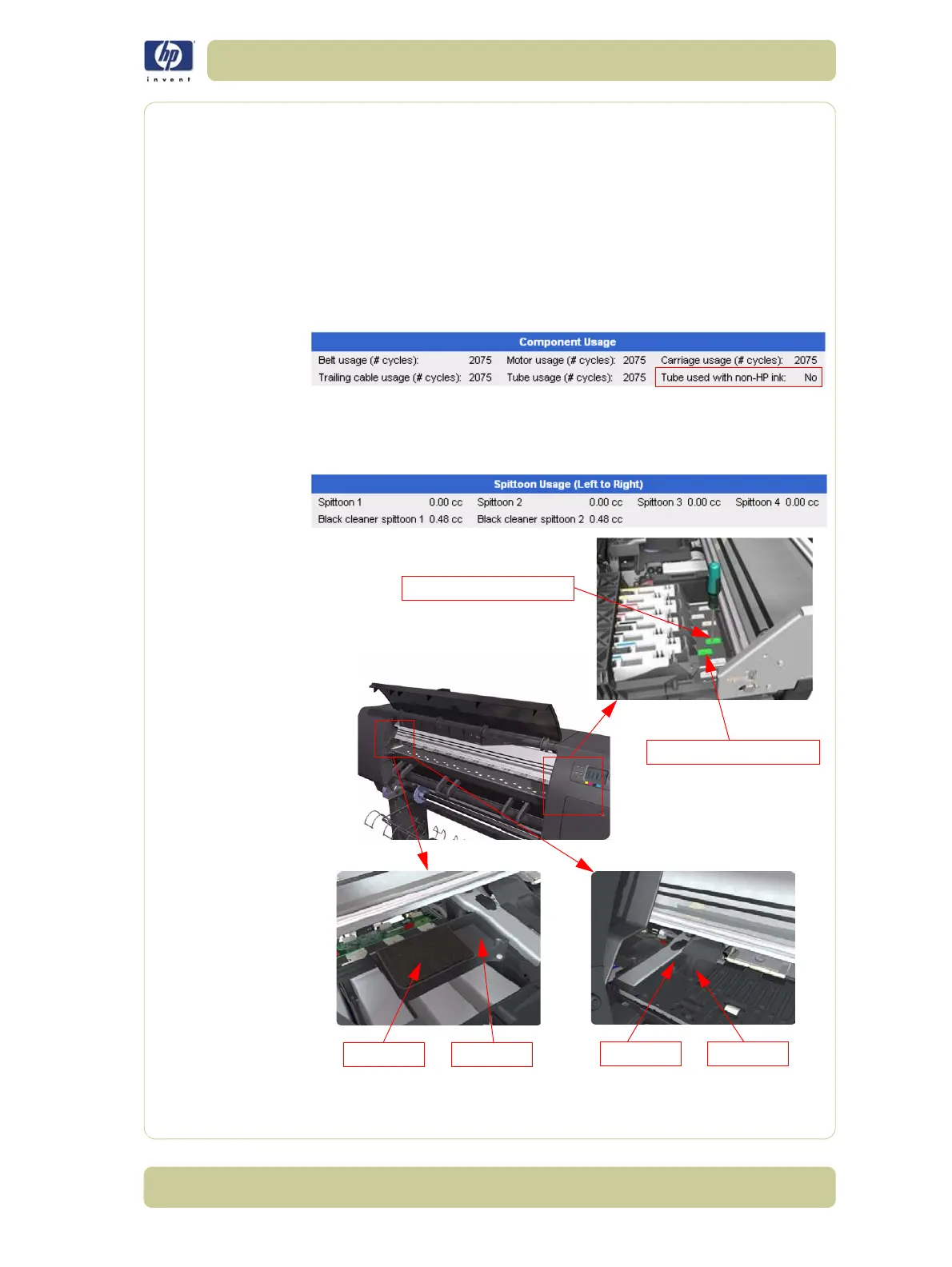

Component Usage
One cycle is counted when the Carriage makes one movement to the left of
the Printer and then returns to the right.
îš„ Tube used with non-HP ink: This is set to Yes as soon as the Printer
detects that at least one Ink Cartridge was used with third-party ink. This
cannot be reset to No (because it is part of the ISS EEROM), except
when:
– The Ink Supply Tubes are replaced (not under warranty).
– The Printer detects that the Ink Cartridge being used no longer uses
third-party ink.
Spittoon Section
This section contains information on the different Spittoons located in the
Printer.
Black Cleaner Spittoon #1
Black Cleaner Spittoon #2
Spittoon #1 Spittoon #2
Spittoon #3 Spittoon #4
To Next Page
