8-39
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

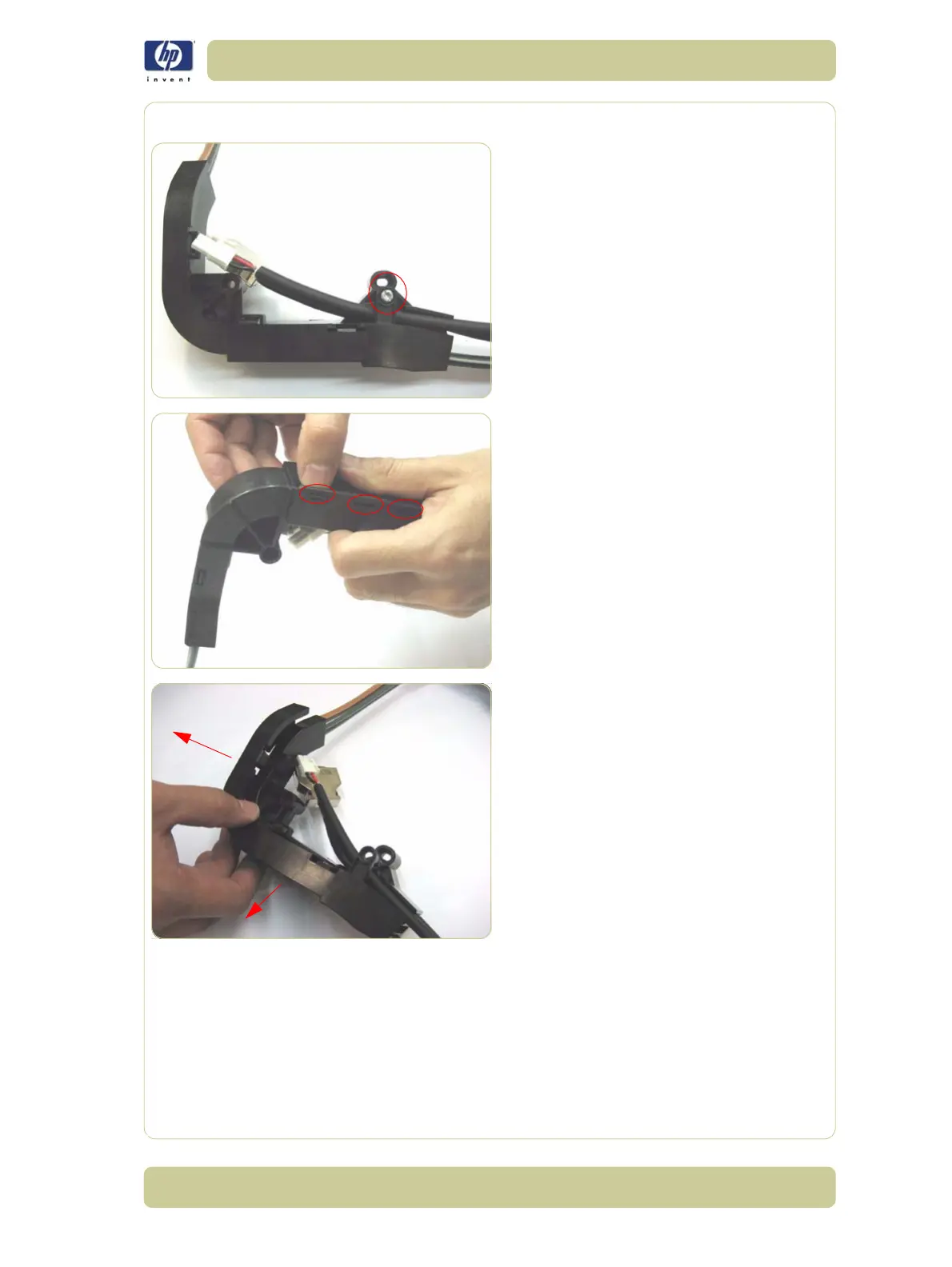

Removing the trailing cable from the new type
1. Remove one T15 screw from the Top
Crane.
2. Remove the Top Crane Cover by
unclipping it from 3 latches located
underneath.
3. Remove the Top Crane Cover.
To Next Page
