8-41
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

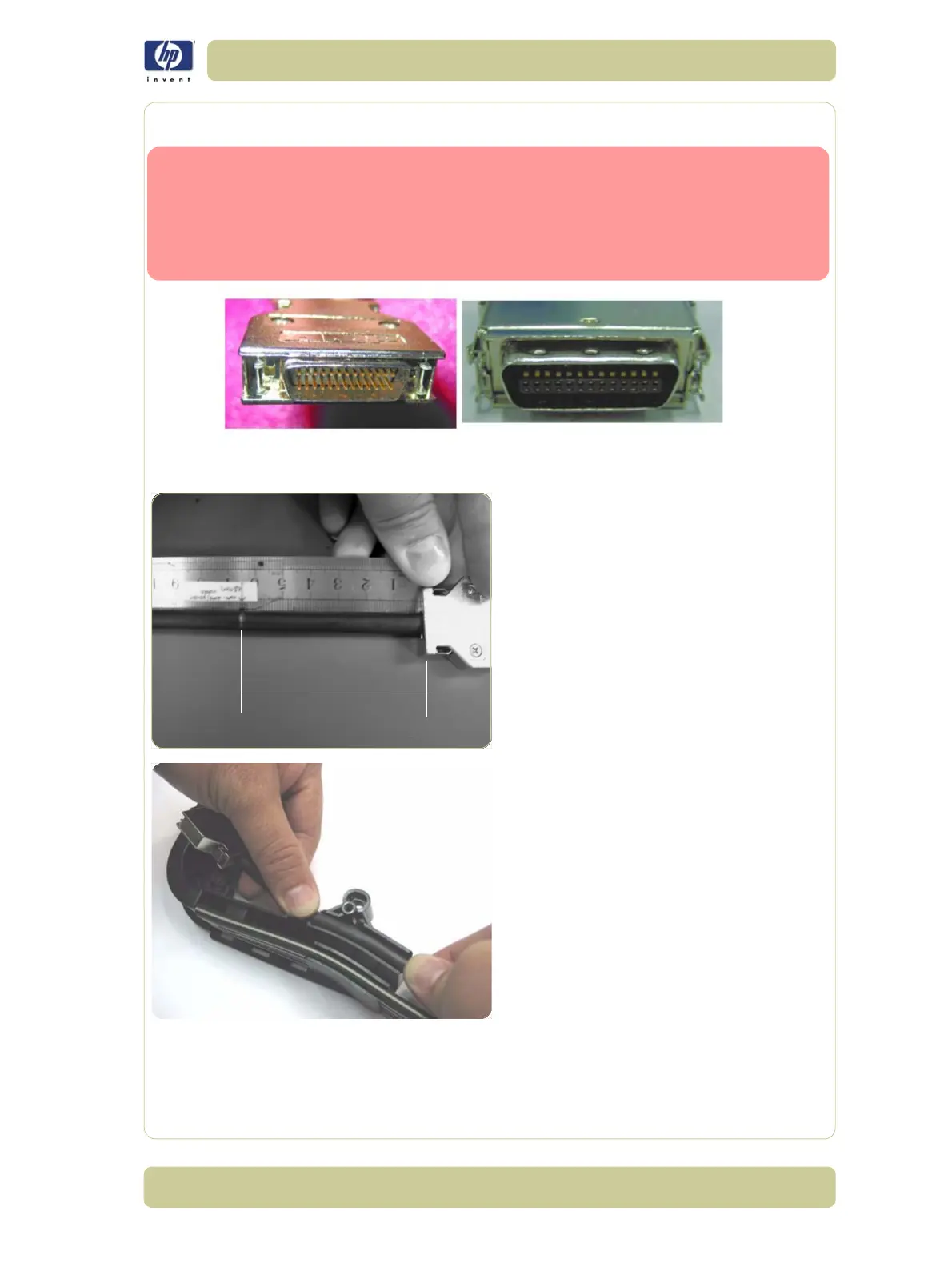

Installation of the new Trailing Cable
There are two types of Trailing Cable in this kit, only one of the trailing cables
will be compatible with the Gamut PCA:
If the Gamut PCA in the printer is old and has never been replaced, use the
Trailing cable with the old type of connector
If the Gamut PCA in the printer is new and has been replaced in the past, use
the Trailing cable with the new type of connector
1. Mark on the Trailing Cable 42" about
65mm from the neck of the connectors
using a marker pen.
2. Install the new Trailing Cable into the Top
Crane.
Old type of connector New type of connector
To Next Page
