8-45
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual
12. Insert the Trailing Cable and Carriage
Power Cable into all the Cable Holders
and insert all the Cable Holders into the
slots of the Ink Tube Carrier.

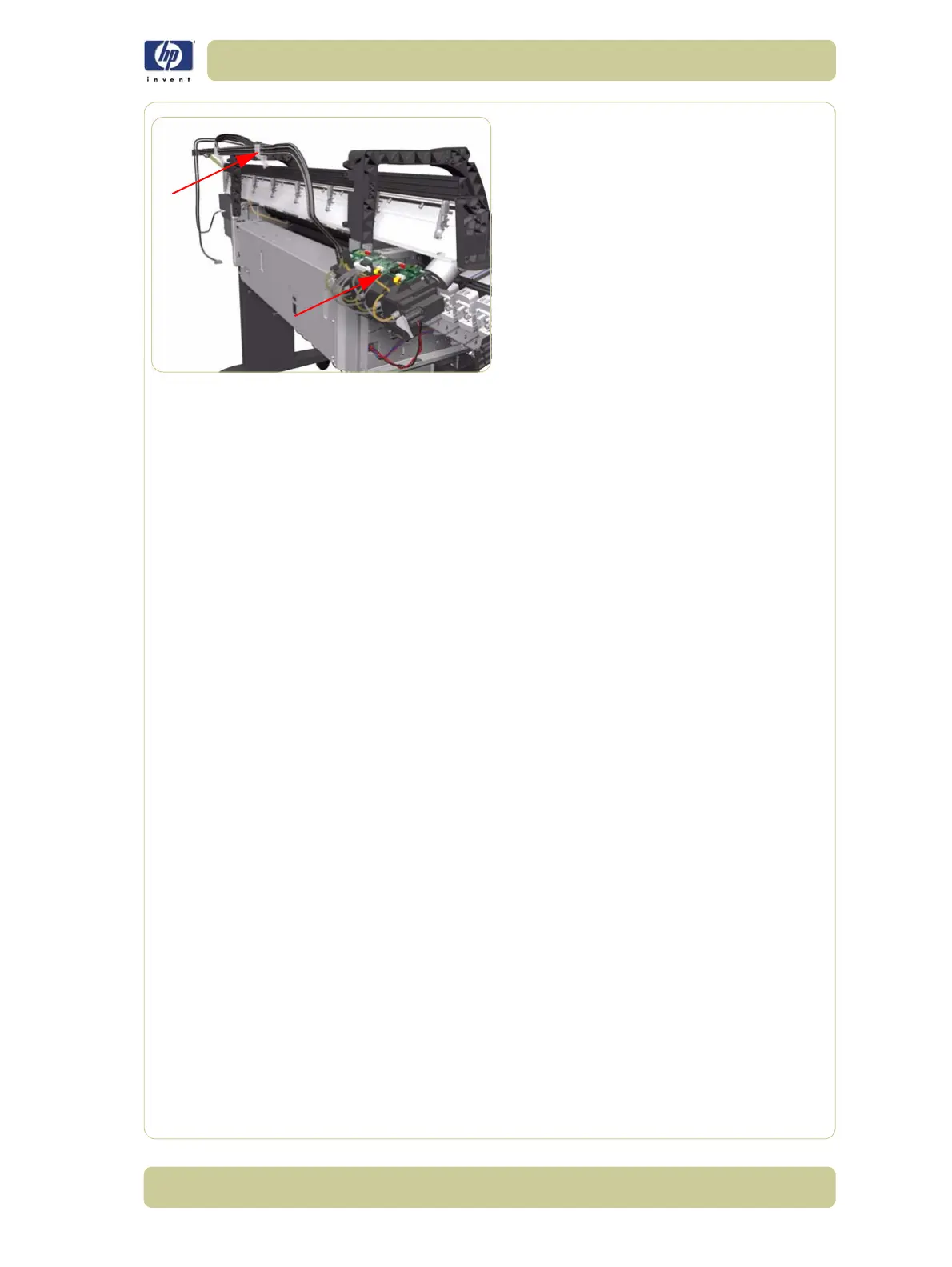

13. Install the Ink Supply Tubes, Trailing Cable
and Carriage Power Cable into the Printer.
(The rest of the installation procedure is the
same as the removal procedure but in
reverse).
To Next Page
