8-83
Removal and Installation
HP Designjet 4000/4020 Printer Series Service Manual

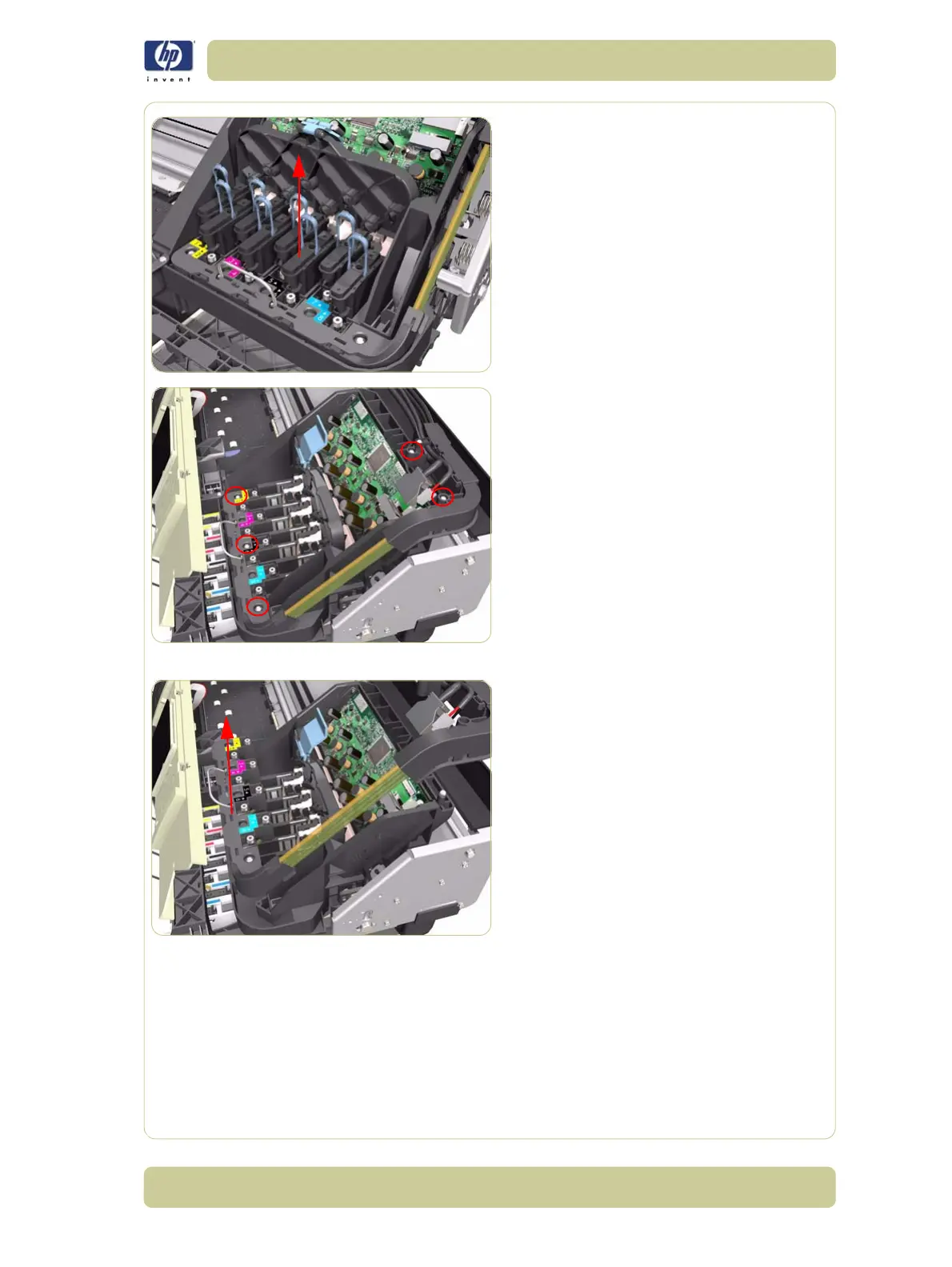

7. Open the Carriage Cover and remove ALL
the Printheads from the Carriage Assembly.
8. Remove five T-15 screws (Type G) that
secure the Ink Supply Tubes to the Carriage
Assembly.
9. Remove the Ink Supply Tubes from the
Carriage Assembly and safely place to
one side of the Printer.
