General System Configuration
Configuring SNMP

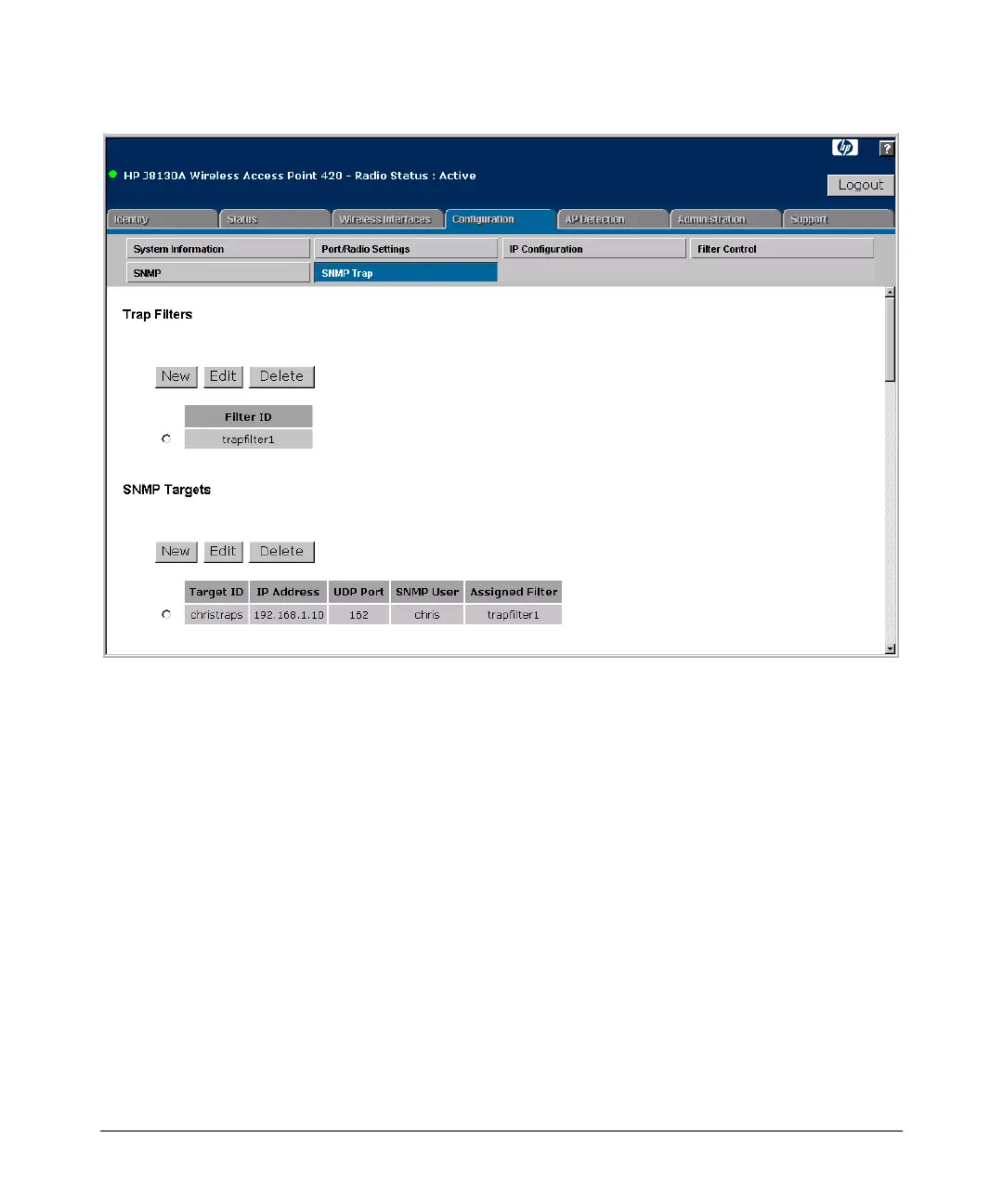

Figure 5-7. Creating SNMP v3 Trap Targets and Filters
To Create SNMP Trap Targets:
1. Select the Configuration tab.
2. Click the [
SNMP Trap] button.
3. Click the
[New] button under under SNMP Targets.
4. In the SNMP Target Address window, type a name for the Target ID.
5. Specify the IP address of the receiving management station and the UDP
port used.
6. Type the SNMP v3 user name of the trap receiver. (User names must first
be created using the web interface or CLI.)
7. (Optional) Assign a trap filter by selecting the filter name from the drop-
down list. If a filter is not assigned to the Target ID, all traps are sent. (Trap
filter must first be created for the name to appear in the drop-down list.)
5-29

HP 420 Specifications

General

Model	HP 420
Category	Wireless Access Point
Data Link Protocol	IEEE 802.11b/g/n
Frequency Band	2.4 GHz
Security Features	WPA, WPA2
Power Source	Power over Ethernet (PoE)
Operating Temperature	0°C to 40°C
