General System Configuration
Configuring VLAN Support
■ Management VLAN Tagging: Specifies if the management VLAN is a
tagged or untagged VLAN.
• Ta gged: Management traffic is sent tagged with the VLAN ID.
Received management traffic must be tagged with the VLAN ID.
• Untagged: Management traffic is sent untagged. Received manage-
ment traffic that is untagged is accepted for access point manage-
ment. Note that if the management VLAN is set to untagged, other
SSID interface default VLANs must be set to tagged.
To Enable VLAN Support:
1. Click the
[Management] button on the Administration tab.
2. Type a number between 1 and 4094 in the Management VLAN ID text field.
3. Select Tagged or Untagged for the management VLAN traffic.
4. Set VLAN Enable to Static or Dynamic.
5. Click the
[Apply Changes] button.
6. Reboot the access point.

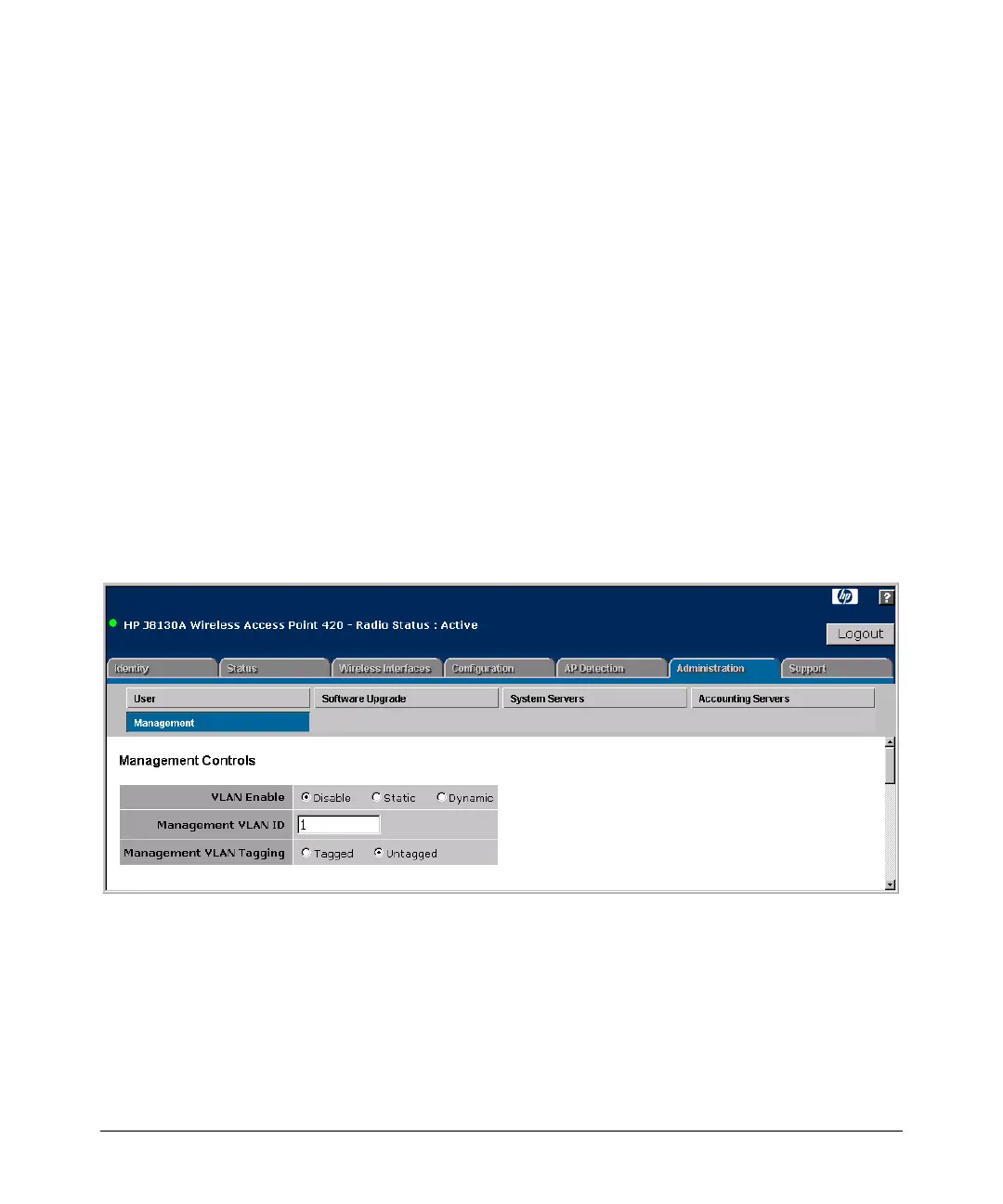

Figure 5-17. Configuring VLAN Support
5-64
