Huawei ECC800 - 3.2.3 Smart ETH Gateway

ECC800 Data Center Controller
User Manual (for ECC800-Pro)
3 Device Description
Issue 06 (2020-04-22)
Copyright © Huawei Technologies Co., Ltd.
18

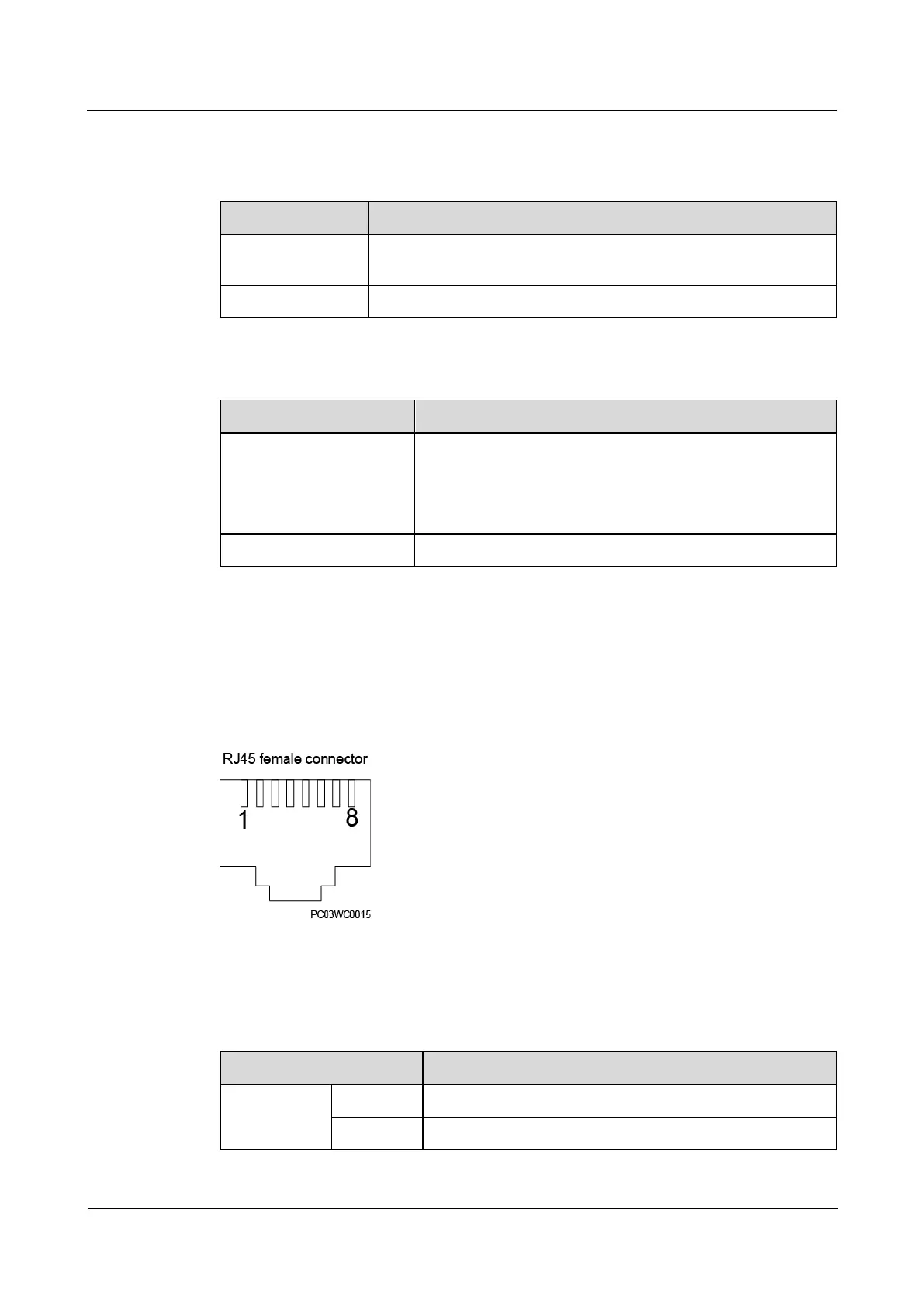

Table 3-5 ECC800-Pro RF_Z parameters
Item
Specifications
RF_Z Operation
Frequency
2405–2480 MHz
RF_Z EIRP (max.)
8 dBm
Table 3-6 ECC800-Pro 4G parameters
Item
Specifications
3G/4G operation
frequency
LTE (FDD): BAND1, BAND2, BAND3, BAND4, BAND5,
BAND7, BAND8, BAND20
DC-HSPA+/HSPA+/HSPA/UMTS: 850/900/1900/2100 MHz
GSM/GPRS/EDGE: 850/900/1800/1900 MHz
3G/4G EIRP (max.)
23 dBm
Communications Port
The ECC800-Pro provides the following communications ports. Figure 3-5 shows the pins of
the RJ45 port.
Figure 3-5 RJ45 port pins
There are four GE ports, that is, two WAN ports (WAN1 and WAN2) and two LAN ports
(LAN1/POE and LAN2/POE).
Table 3-7 GE port pin definitions
Item
Description
Pin sequence
Pin1
GE1+
Pin2
GE1-
