10 Installing the Aisle Containment
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3. Use a hammer drill with a 15 mm drill bit to drill four holes that are 45–50 mm deep at
the bottom of the sealing plate, and secure the sealing plate to the floor using four plastic
expansion bolts (labeled DKBA44091028) and washers.
If drilling holes in the ESD floor is not allowed onsite, use four ST4.8x25 self-drilling tapping screws
and washers for securing.

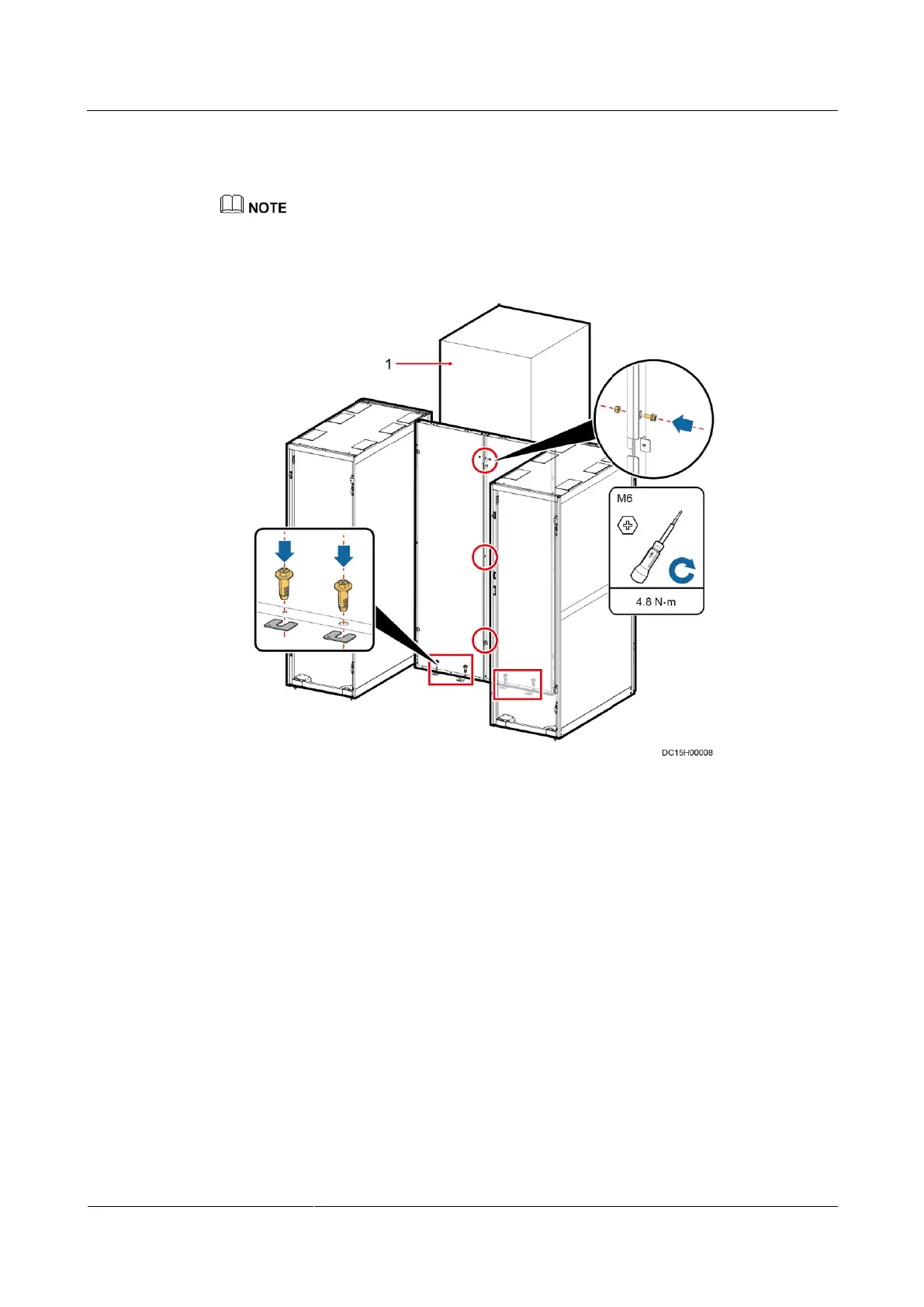

Figure 10-2 Installing sealing plates near an aisle
Step 3 Secure the two sealing plates using three M6 screws and nuts.
Step 4 Place the connected sealing plates at the specified installation position, facing the correct
direction.
Step 5 Secure the connecting kits obtained from the sealing plate fitting bag to the sealing plate using
M4 screws, and then secure the sealing plate to the cabinet.
