FusionModule2000 Smart Modular Data Center
Installation Guide
15 Installing Monitoring Devices
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

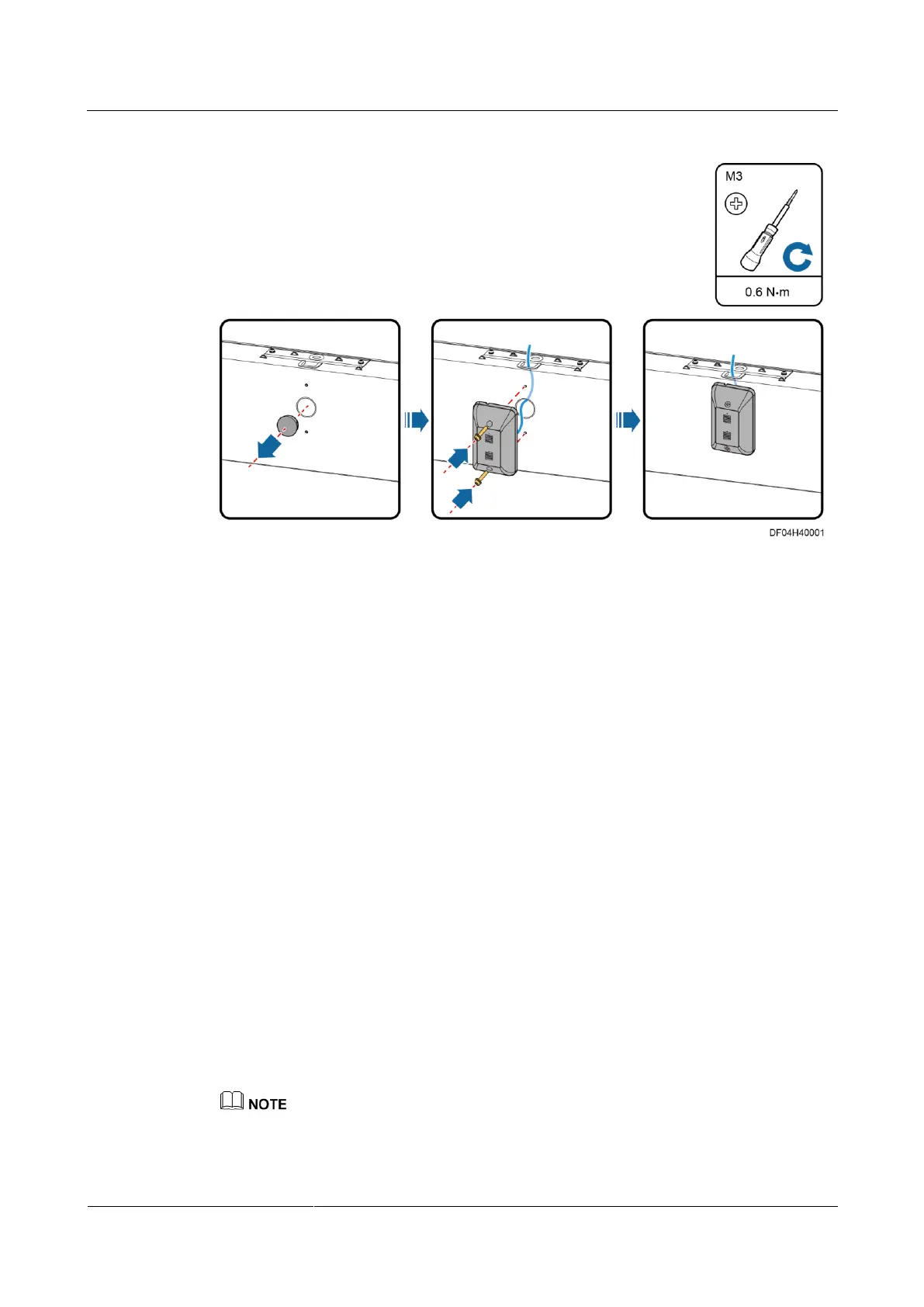

Figure 15-37 Installing an alarm beacon
Step 2 Route the alarm beacon cable through the door box cable hole.
Step 3 Secure the alarm beacon to the door box using two M3 screws.
----End
15.4.6 (Optional) Installing a Revolving Door Magnetic Lock
Context
The BOM number for a revolving door magnetic lock is 02070261.
Preparations
Tools: hex key, Phillips screwdriver
Materials: magnetic lock and accessories, white rubber washer
Document: revolving door monitoring device installation position diagram
Procedure
Step 1 Remove the cover of the magnetic lock. The cover of the magnetic lock is located under the
mounting kit above the door. If no magnetic lock is configured, the cover is used to cover up
the magnetic lock installation position. If a magnetic lock is configured, remove the cover and
install the magnetic lock.
After a magnetic lock is installed, the cover can be discarded.
1. Remove the cover at the rear of the mounting kit above the door, remove the four screws
at the bottom of the mounting kit, and keep the screws aside.
