FusionModule2000 Smart Modular Data Center

Installation Guide

15 Installing Monitoring Devices

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

235

15.9.1 Laying Out the Water Detection Cable (Dual-Row Scenario)

Context

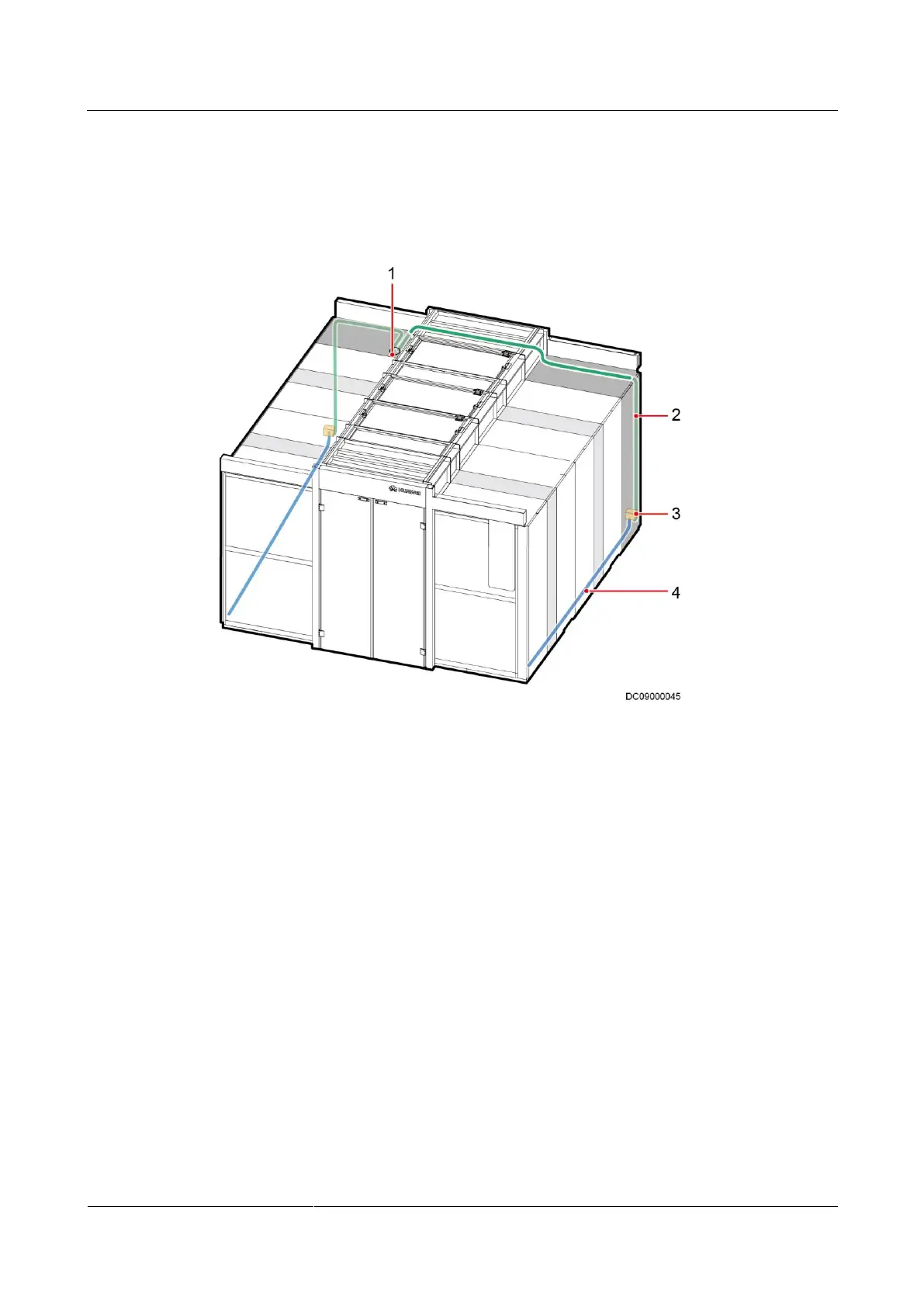

Figure 15-77 Laying out a water detection cable (top pipe routing)

(1) ECC800

(2) Network cable

(3) Water detector

(4) Water detection cable
