FusionModule2000 Smart Modular Data Center
Installation Guide
11 Installing Cable Troughs and Cable Trays
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11.2.3 (Optional) Installing Indoor Cable Trays
For details, obtain the required document according to the section "Documentation
Preparations."
11.2.4 (Optional) Grounding Cable Trays

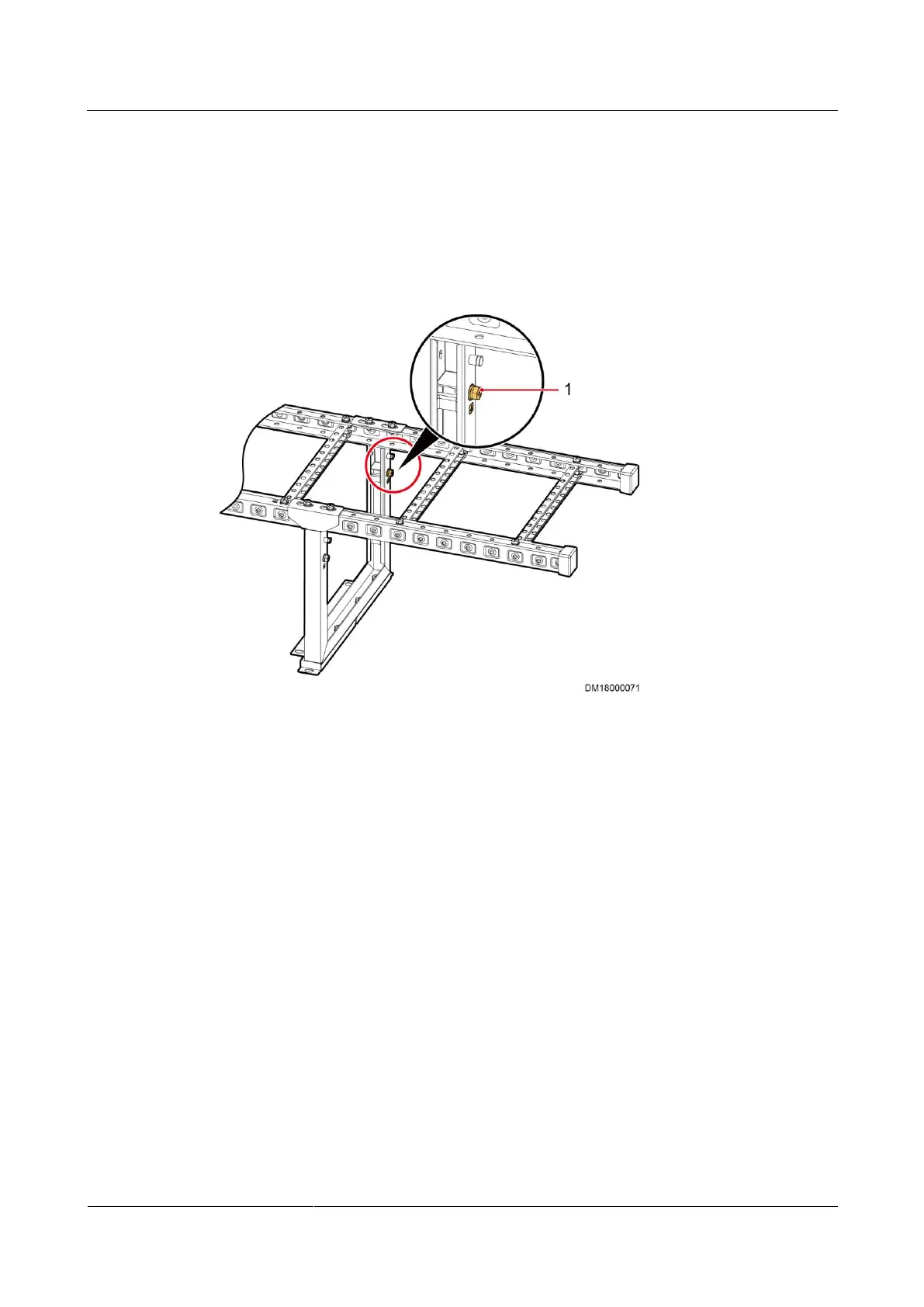

Figure 11-20 Cable tray ground points
Connect one end of the cable tray ground cable to either of the idle ground points on the cable
tray, and secure the other end to the top of the cabinet using M5x10 tapping screws.
