FusionModule2000 Smart Modular Data Center

Installation Guide

15 Installing Monitoring Devices

Issue 02 (2018-03-31)

Huawei Proprietary and Confidential

199

15.4.2 Monitoring Component Layout for the Revolving Door

(Dual-Row Scenario)

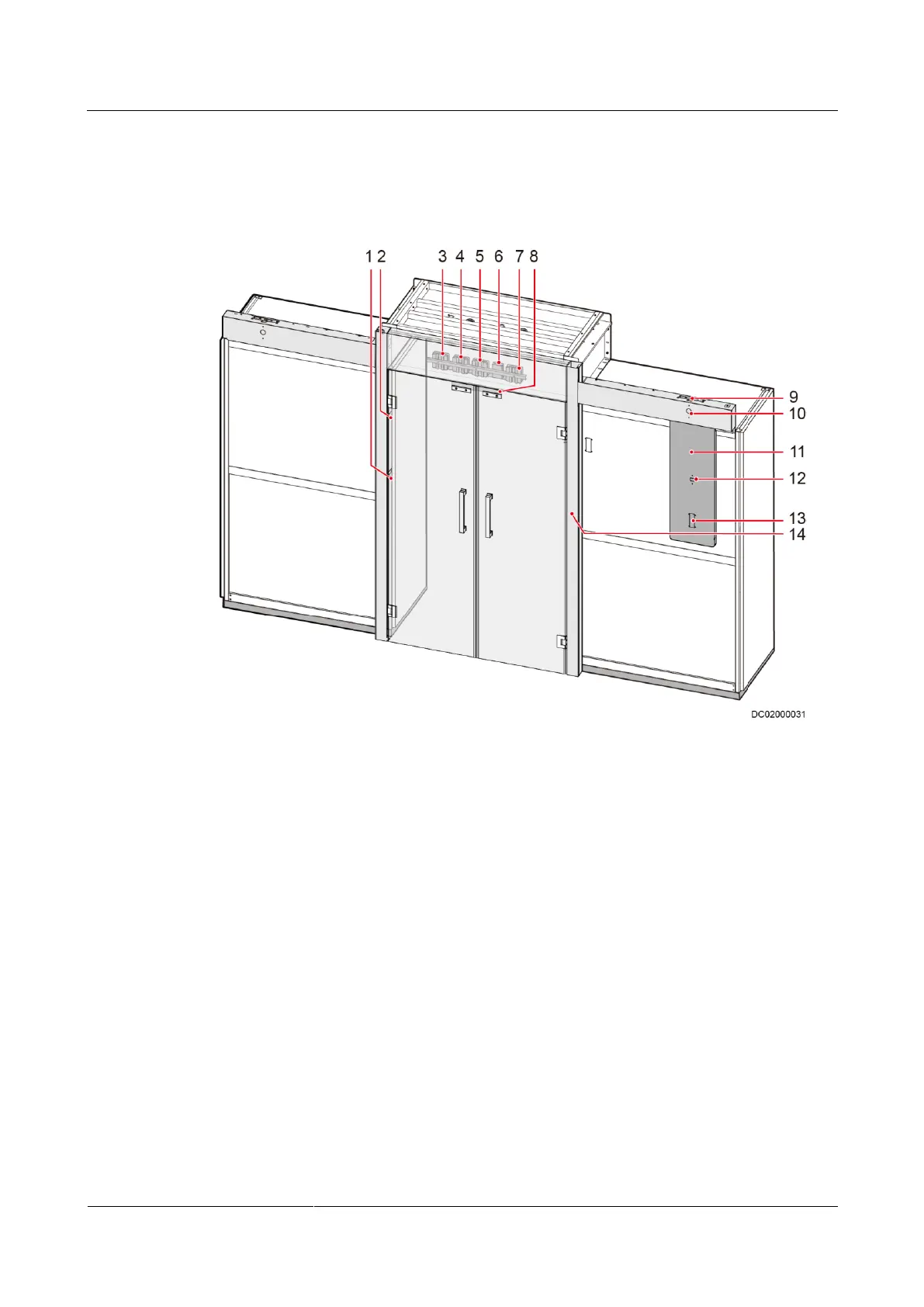

Figure 15-31 Installation positions for monitoring components on the revolving door

(1) Exit button

(2) Emergency button

(3) AC actuator

(4) Access actuator

(5) Skylight actuator

(6) WiFi converter

(7) AC actuator

(8) Revolving door magnetic lock

(9) Pad power connector

(10) Alarm beacon

(11) Pad mounting kit

(12) Pad

(13) Access control device

(14) Light button
