15.5 Installing Monitoring Devices on Cable Troughs
15.5.1 Layout of Smart ETH Gateways (Dual-Row Scenario)
Components marked in the same background color should be connected to the same smart ETH
gateway.
Table 15-4 Scenario 1
Scenario
Rules for Deploying Smart ETH
Gateways

Rack environment unit not deployed

Module length ≤ 7 m; number of air
conditioners ≤ 4
Deploy one smart ETH gateway for each
end cabinet in the smart module, not for
other cabinets. A total of four smart ETH
gateways should be deployed, as shown in
Figure 15-64.

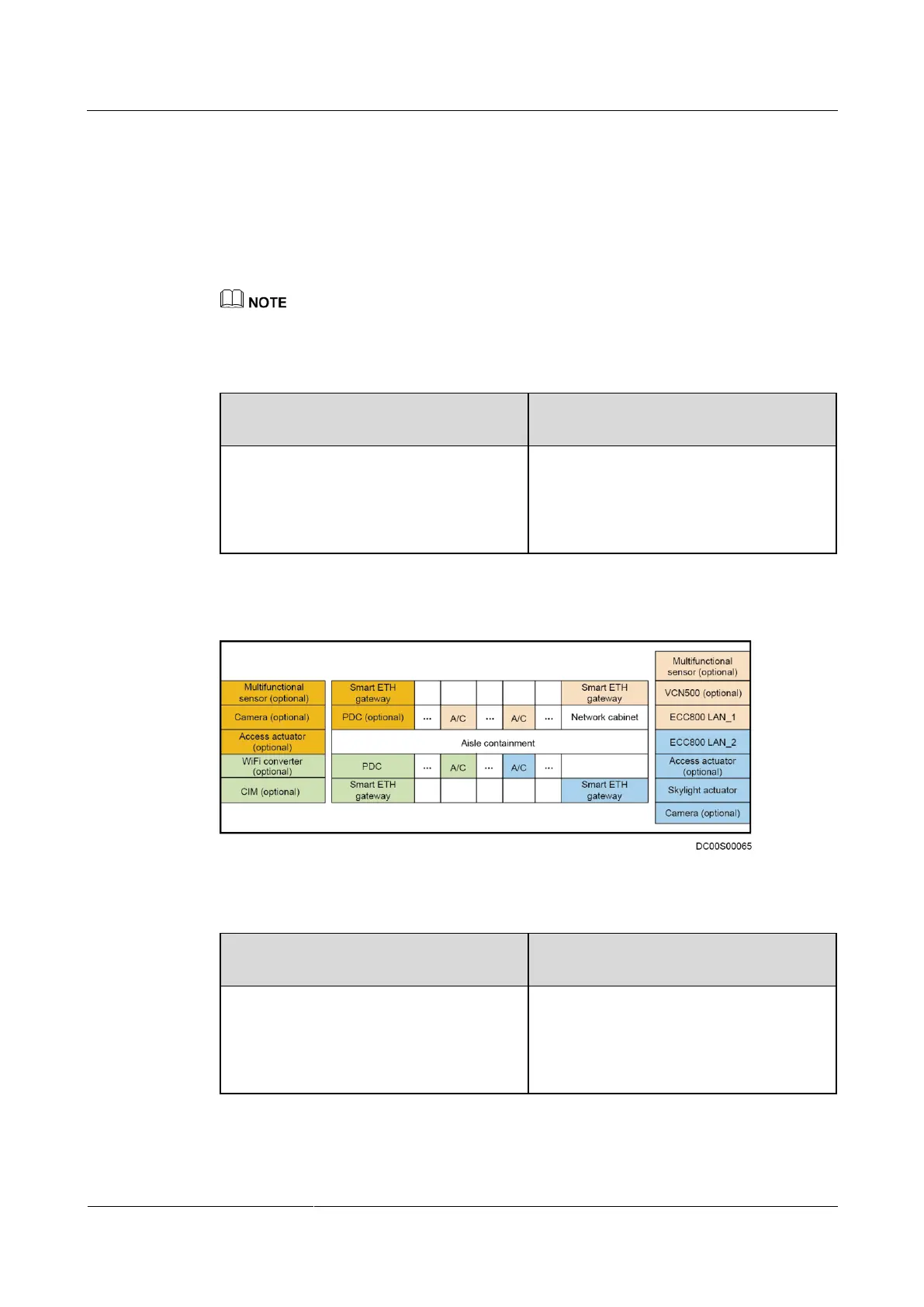

Figure 15-64 Layout of smart ETH gateways in scenario 1
Table 15-5 Scenario 2
Scenario
Rules for Deploying Smart ETH
Gateways

Rack environment unit not deployed

Module length > 7 m; number of air
conditioners > 4
Deploy one smart ETH gateway for each
end cabinet and IT cabinet in the middle in
the smart module, not for other cabinets. A
total of six smart ETH gateways should be
deployed, as shown in Figure 15-65.
